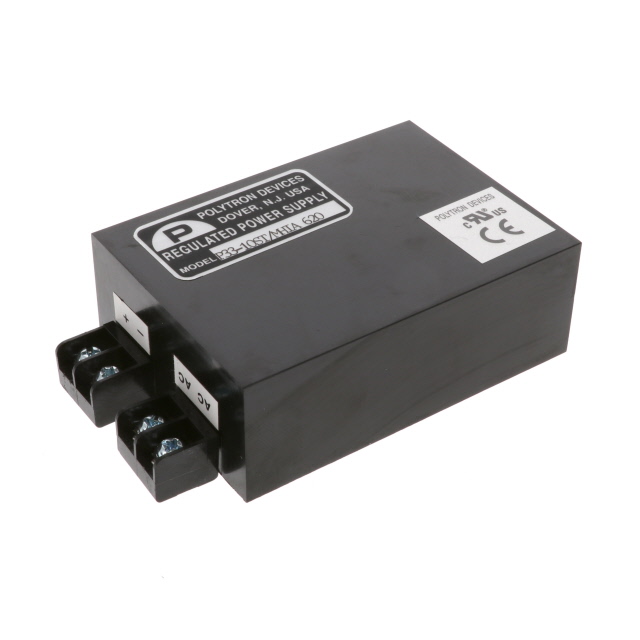

P33-10ST/MHIA

Active

Polytron

AC/DC CONVERTER 10V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P33-10ST/MHIA

Active

Polytron

AC/DC CONVERTER 10V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P33-10ST/MHIA	P33-10 Series

Applications	Medical	ITE (Commercial), Medical
Approval Agency	CE, cURus	CE, cURus, UL, CE, cURus
Current - Output (Max)	-	150 mA
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	100 mA
Current - Output 1	150 mA	100 - 150 mA
Current - Output 2	-	100 mA
Features	-	SCP
Line Regulation	-	0.02 - 0.1 %
Load Regulation	-	0.05 - 0.1 %
Mounting Type	Chassis Mount	Through Hole, Chassis Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	71 °C	71 - 85 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Package / Case	-	5-DIP Module, 7-DIP Module, 5 Leads, 4-DIP Module, 7-DIP Module
Size / Dimension [x]	104.1 mm	57.2 - 104.1 mm
Size / Dimension [x]	4.1 "	2.25 - 4.1 in
Size / Dimension [y]	63.5 mm	44.5 - 63.5 mm
Size / Dimension [y]	2.5 in	1.75 - 2.5 in
Size / Dimension [z]	22.2 mm	22.2 - 25.4 mm
Size / Dimension [z]	0.88 in	0.87 - 1 in
Type	Enclosed	Enclosed
Voltage - Input [Max]	125 VAC	125 - 240 VAC
Voltage - Input [Min]	105 VAC	100 - 115 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	10 V	10 V
Voltage - Output 2	-	-10 V

P33-10 Series

AC/DC CONVERTER 10V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Features	Current - Output (Max) [Max]	Applications	Mounting Type	Line Regulation	Number of Outputs	Load Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Type	Current - Output (Max)	Current - Output (Max)	Current - Output 1	Voltage - Isolation
Polytron P33-10S/22	0.88 in	3.5 in	63.5 mm	2.5 in	22.4 mm	88.9 mm	10 V	SCP	150 mA	ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	5-DIP Module	-25 °C	71 °C	CE, cURus, UL	Enclosed
Polytron P33-10Q/MHIA	0.87 in	3.5 in	63.5 mm	2.5 in	22.2 mm	88.9 mm	10 V			Medical	Through Hole	0.02 %	2	0.05 %	125 VAC	100 VAC	7-DIP Module, 5 Leads	-25 °C	71 °C	CE, cURus	Enclosed	100 mA	100 mA
Polytron P33-10SM	1 "	2.25 in	44.5 mm	1.75 in	25.4 mm	57.2 mm	10 V	SCP		ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	5-DIP Module	-25 °C	71 °C	CE, cURus, UL	Enclosed
Polytron P33-10SQX	0.88 in	3.5 in	63.5 mm	2.5 in	22.4 mm	88.9 mm	10 V	SCP	150 mA	ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	100 VAC	7-DIP Module, 5 Leads	-25 °C	71 °C	CE, cURus, UL	Enclosed
Polytron P33-10SMW	1 "	2.25 in	44.5 mm	1.75 in	25.4 mm	57.2 mm	10 V	SCP		ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	5-DIP Module	-40 °C	85 °C	CE, cURus, UL	Enclosed
Polytron P33-10S/22/MHIA	0.88 in	3.5 in	63.5 mm	2.5 in	22.4 mm	88.9 mm	10 V		150 mA	Medical	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	5-DIP Module	-25 °C	71 °C	CE, cURus	Enclosed
Polytron P33-10ST/MHIA	0.88 in	4.1 "	63.5 mm	2.5 in	22.2 mm	104.1 mm	10 V			Medical	Chassis Mount		1		125 VAC	105 VAC		-25 °C	71 °C	CE, cURus	Enclosed			150 mA	4000 V
Polytron P33-10SM/22	1 "	2.25 in	44.5 mm	1.75 in	25.4 mm	57.2 mm	10 V	SCP		ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	5-DIP Module	-25 °C	71 °C	CE, cURus, UL	Enclosed
Polytron P33-10S	0.88 in	3.5 in	63.5 mm	2.5 in	22.4 mm	88.9 mm	10 V	SCP	150 mA	ITE (Commercial)	Through Hole	0.1 %	1	0.1 %	125 VAC	105 VAC	7-DIP Module, 5 Leads	-25 °C	71 °C	CE, cURus, UL	Enclosed
Polytron P33-10W	0.88 in	3.5 in	63.5 mm	2.5 in	22.4 mm	88.9 mm	10 V	SCP		ITE (Commercial)	Through Hole	0.02 %	2	0.05 %	125 VAC	105 VAC	7-DIP Module, 5 Leads	-40 °C	85 °C	CE, cURus, UL	Enclosed	100 mA	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 183.21
		10	$ 174.05

Description

General part information

P33-10 Series

Enclosed AC DC Converters 1 Output 10V 105 ~ 125 VAC Input
