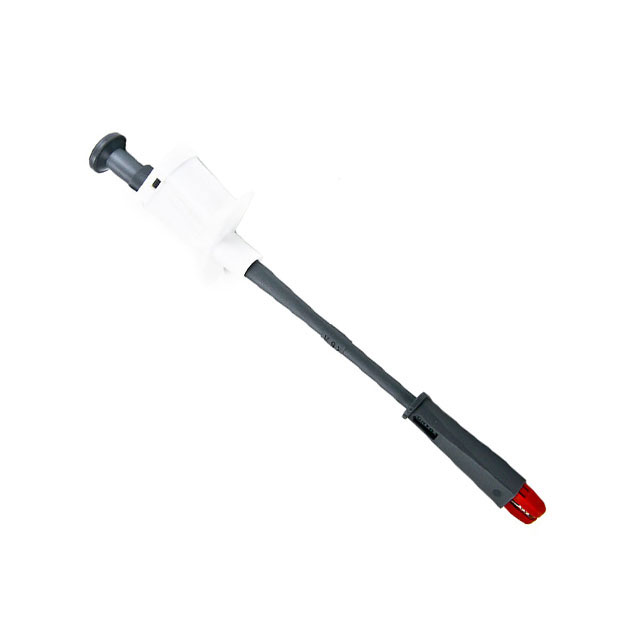

CT2400-9

Active

Cal Test Electronics

GATOR CLIP BRASS INSULATED 6A

Search across all available documentation for this part.

Active

Cal Test Electronics

GATOR CLIP BRASS INSULATED 6A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT2400-9	CT2400 Series

Color	White	Black, White, Blue, Red
Current Rating (Amps)	6 A	6 A
Insulation	Insulated	Insulated
Jaw Opening	12.7 mm	12.7 mm
Jaw Opening	0.5 in	0.5 in
Length	152.4 mm	152.4 mm
Length	6 in	6 in
Material	Brass	Brass
Material - Insulation	Nylon, Santoprene, Polyamide (PA)	Nylon, Santoprene, Polyamide (PA)
Plating	Nickel	Nickel
Quantity	1 Box	1 Box
Ratings	CAT III	CAT III
Ratings	1000 V	1000 V
Termination	Banana, Female Socket (Jack)	Banana, Female Socket (Jack)
Type	Alligator	Alligator
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V

GATOR CLIP BRASS INSULATED 6A

Part	Length	Length	Material - Insulation	Type	Color	Plating	Voltage - Rated	Voltage - Rated	Insulation	Material	Quantity	Ratings	Ratings	Termination	Current Rating (Amps)	Jaw Opening	Jaw Opening
Cal Test Electronics CT2400-0	152.4 mm	6 in	Nylon, Polyamide (PA), Santoprene	Alligator	Black	Nickel	1 kV	1000 V	Insulated	Brass	1 Box	CAT III	1000 V	Banana, Female Socket (Jack)	6 A	12.7 mm	0.5 in
Cal Test Electronics CT2400-9	152.4 mm	6 in	Nylon, Polyamide (PA), Santoprene	Alligator	White	Nickel	1 kV	1000 V	Insulated	Brass	1 Box	CAT III	1000 V	Banana, Female Socket (Jack)	6 A	12.7 mm	0.5 in
Cal Test Electronics CT2400-6	152.4 mm	6 in	Nylon, Polyamide (PA), Santoprene	Alligator	Blue	Nickel	1 kV	1000 V	Insulated	Brass	1 Box	CAT III	1000 V	Banana, Female Socket (Jack)	6 A	12.7 mm	0.5 in
Cal Test Electronics CT2400-2	152.4 mm	6 in	Nylon, Polyamide (PA), Santoprene	Alligator	Red	Nickel	1 kV	1000 V	Insulated	Brass	1 Box	CAT III	1000 V	Banana, Female Socket (Jack)	6 A	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 26.00

General part information

6 A Insulated Alligator Test Clip Brass 0.500" (12.70mm) 1/2" 1000V (1kV)
