TMC5041-LA-T
ActiveAnalog Devices Inc./Maxim Integrated

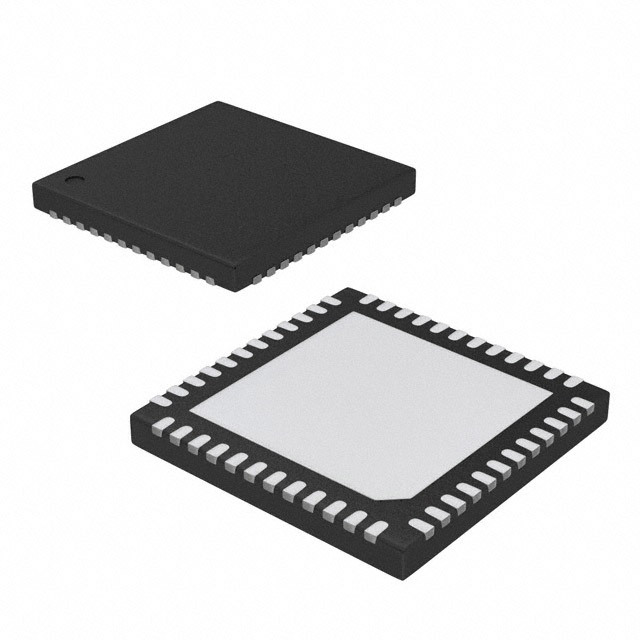

IC MTR DRV BIPOLAR 5.5-26V 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
TMC5041-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 5.5-26V 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC5041-LA-T | TMC5041 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Contents | - | Board(s) |
| Current - Output | 1.1 A | 1.1 A |
| Embedded | - | False, True |
| Embedded | - | MCU, 32-Bit |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI | SPI |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Half Bridge (8) | Half Bridge (8), Half Bridge (2) |
| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s) |
| Step Resolution [Max] | 1 | 1 |
| Step Resolution [Min] | 0.00390625 | 0.00390625 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 48-QFN (7x7) | 48-QFN (7x7) |
| Technology | Power MOSFET | Power MOSFET |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC5041 |
| Voltage - Load [Max] | 26 V | 26 V |
| Voltage - Load [Min] | 5.5 V | 5.5 V |
| Voltage - Supply [Max] | 26 V | 26 V |
| Voltage - Supply [Min] | 5.5 V | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.48 | |
| 10 | $ 8.05 | |||
| 25 | $ 7.16 | |||
| 100 | $ 6.17 | |||
| 250 | $ 5.70 | |||
| 500 | $ 5.40 | |||
| 1000 | $ 5.16 | |||
| Digi-Reel® | 1 | $ 11.48 | ||
| 10 | $ 8.05 | |||
| 25 | $ 7.16 | |||
| 100 | $ 6.17 | |||
| 250 | $ 5.70 | |||
| 500 | $ 5.40 | |||
| 1000 | $ 5.16 | |||
| Tape & Reel (TR) | 2000 | $ 5.14 | ||
TMC5041 Series
EVAL BOARD FOR TMC5041
| Part | Supplied Contents | Contents | Embedded | Utilized IC / Part | Type | Step Resolution [Max] | Step Resolution [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Applications | Motor Type - Stepper | Output Configuration | Current - Output | Function | Interface | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Embedded | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC5041-EVAL | Board(s) | Board(s) | TMC5041 | Power Management | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5041-LA-T | 1 | 0.00390625 | 5.5 V | 26 V | Surface Mount | 48-QFN (7x7) | -40 °C | 125 ¯C | Power MOSFET | General Purpose | Bipolar | Half Bridge (8) | 1.1 A | Driver - Fully Integrated, Control and Power Stage | SPI | 48-VFQFN Exposed Pad | 26 V | 5.5 V | ||||||||
Analog Devices Inc./Maxim Integrated TMC5041-LA | 1 | 0.00390625 | 5.5 V | 26 V | Surface Mount | 48-QFN (7x7) | -40 °C | 125 ¯C | Power MOSFET | General Purpose | Bipolar | Half Bridge (2) | 1.1 A | Driver - Fully Integrated, Control and Power Stage | SPI | 48-VFQFN Exposed Pad | 26 V | 5.5 V | ||||||||
Analog Devices Inc./Maxim Integrated TMC5041-EVAL-KIT | Board(s) | TMC5041 | Power Management | 32-Bit, MCU | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5041-BOB | Board(s) | Board(s) | TMC5041 | Power Management | SPI Interface(s) | Motors (Stepper) |
Description
General part information
TMC5041 Series
Bipolar Motor Driver Power MOSFET SPI 48-QFN (7x7)
