BU-5100-A-4-0
ActiveMueller Electric Co
TEST LEAD, BNC PLUG TO FREE END, 300 VRMS, 101.6 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-5100-A-4-0 |
|---|---|
| 1st Connector | BNC, Male Plug |
| 2nd Connector | Wire Lead |
| Cable Length [x] | 4 in |
| Cable Length [x] | 101.6 mm |
| Configuration | BNC to Wire Leads |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 105 °C |
| Temperature Range | 221 °F |
| Voltage - Rated | 300 VAC |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-5100 Series

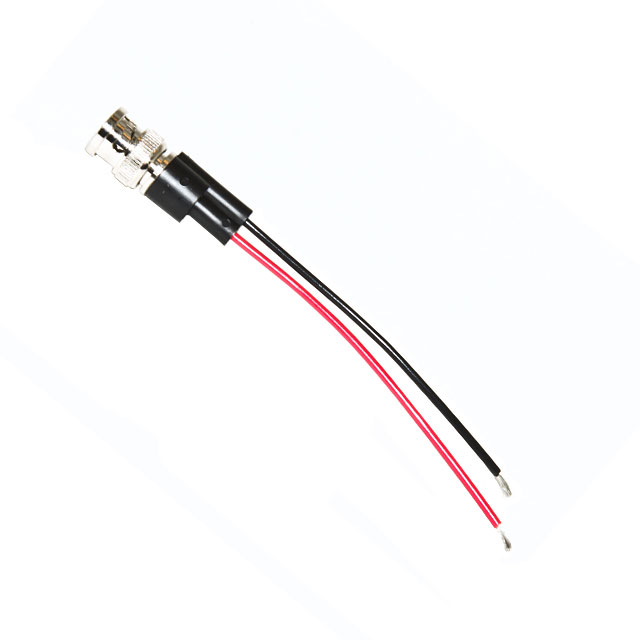

The BU-5100-A-4-0 is a Test Lead with BNC male breakout to tinned end wires connection. It accepts 20AWG tinned copper with 105°C PVC insulation hook-up wire. The BNC male connector is made of quality tarnish-resistant plated brass with a gold-plated brass centre contact and ABS housing.
