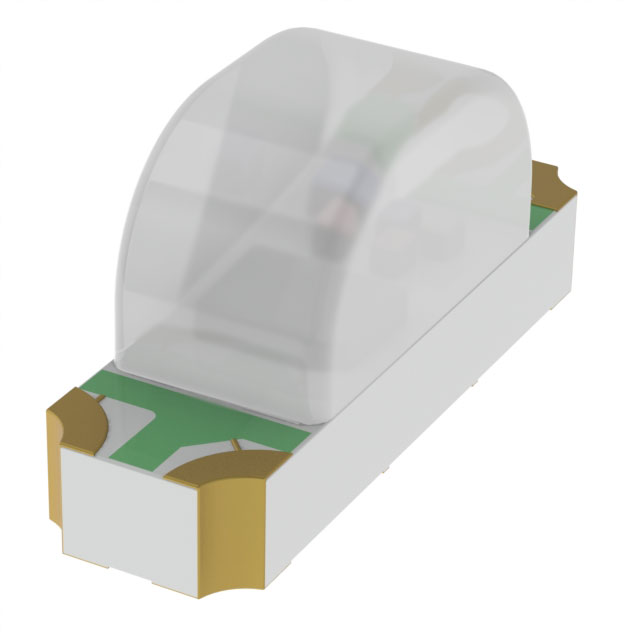

LTST-S313HGEBW
ActiveDiodes Inc
LED RGB DIFFUSED 1204 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTST-S313HGEBW
ActiveDiodes Inc
LED RGB DIFFUSED 1204 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTST-S313HGEBW |
|---|---|
| Color | Red, Green, Blue |
| Height (Max) [Max] [z] | 1.6 mm |
| Lens Size [diameter] | 2 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 445 mcd |
| Millicandela Rating [custom] | 125.5 mcd |
| Millicandela Rating [custom] | 281 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 3210 Metric |
| Package / Case | 1204 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 1204 |
| Viewing Angle | 120 ° |
| Wavelength - Dominant | 622 nm, 469 nm, 524 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.53 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.53 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.23 | |||
Description
General part information
LTST-S313 Series
Red, Green, Blue (RGB) 622nm Red, 524nm Green, 469nm Blue LED Indication - Discrete 1204 (3210 Metric)
