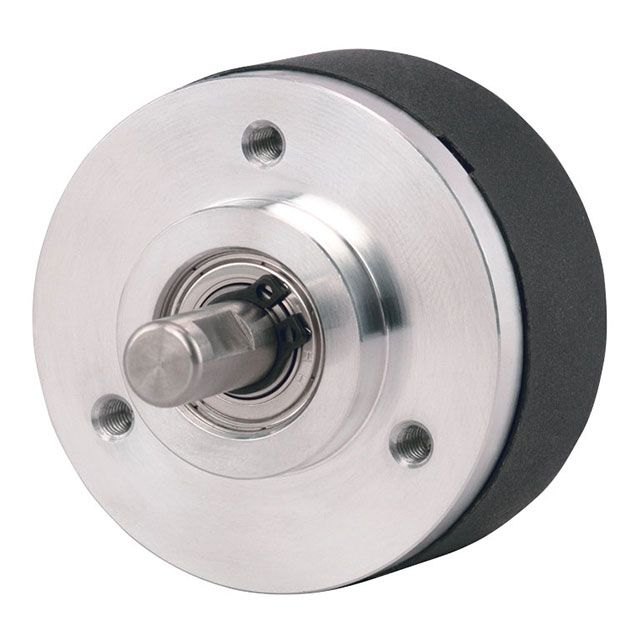

15S-19M1-0100NV1ROC-M00
ActiveEncoder Products Company
1.5" DIA INCREMENTAL ENCODER 1/4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15S-19M1-0100NV1ROC-M00
ActiveEncoder Products Company
1.5" DIA INCREMENTAL ENCODER 1/4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15S-19M1-0100NV1ROC-M00 | 15S-19M1 Series |
|---|---|---|
| Actuator Type | Shaft | Shaft |
| Built in Switch | False | False |
| Detent | False | False |
| Encoder Type | Incremental | Incremental |
| Mounting Type | Servo Mount | Servo Mount |
| Orientation | User Selectable | User Selectable |
| Output Type | Open Collector | Open Collector |
| Pulses per Revolution | 100 | 100 - 3600 |
| Rotational Life (Cycles Min) [Min] | 12B | 12B |
| Termination Style | Cable | Cable |
| Voltage - Supply [Max] | 28 V | 28 V |
| Voltage - Supply [Min] | 5 V | 5 V |
15S-19M1 Series
1.5" DIA INCREMENTAL ENCODER 1/4
| Part | Detent | Voltage - Supply [Min] | Voltage - Supply [Max] | Orientation | Rotational Life (Cycles Min) [Min] | Actuator Type | Pulses per Revolution | Termination Style | Built in Switch | Mounting Type | Encoder Type | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Encoder Products Company 15S-19M1-1000NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 1000 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-0500NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 500 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-0200NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 200 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-1024NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 1024 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-2048NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 2048 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-2500NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 2500 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-10000NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 1000 | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-3600NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 3600 per revolution | Cable | Servo Mount | Incremental | Open Collector | ||
Encoder Products Company 15S-19M1-0100NV1ROC-M00 | 5 V | 28 V | User Selectable | 12B | Shaft | 100 | Cable | Servo Mount | Incremental | Open Collector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 294.00 | |
Description
General part information
15S-19M1 Series
Rotary Encoder Incremental 100 Open Collector User Selectable
Documents
Technical documentation and resources
