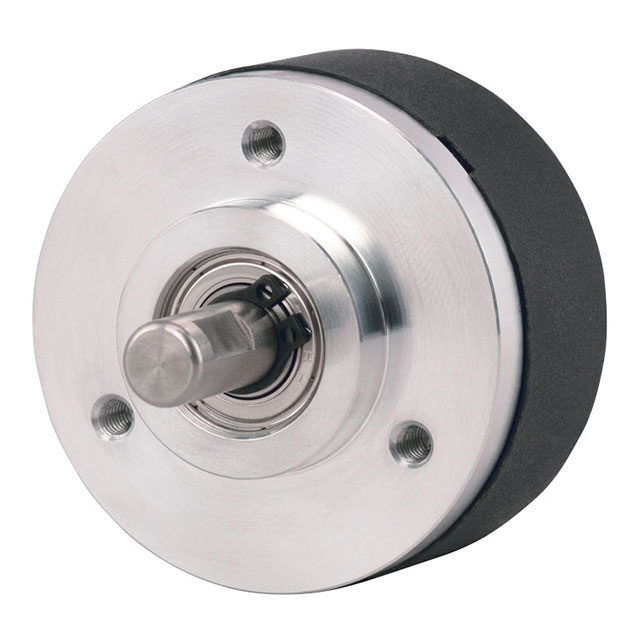

15S-19M1-0500NV1ROC-M00

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 1/4

Search across all available documentation for this part.

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 1/4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 285.00

General part information

Rotary Encoder Incremental 500 Open Collector User Selectable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	15S-19M1-0500NV1ROC-M00	15S-19M1 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Incremental	Incremental
Mounting Type	Servo Mount	Servo Mount
Orientation	User Selectable	User Selectable
Output Type	Open Collector	Open Collector
Pulses per Revolution	500	100 - 3600
Rotational Life (Cycles Min) [Min]	12B	12B
Termination Style	Cable	Cable
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

1.5" DIA INCREMENTAL ENCODER 1/4

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Orientation	Rotational Life (Cycles Min) [Min]	Actuator Type	Pulses per Revolution	Termination Style	Mounting Type	Encoder Type	Output Type
Encoder Products Company 15S-19M1-1000NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	1000	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-0500NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	500	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-0200NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	200	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-1024NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	1024	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-2048NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	2048	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-2500NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	2500	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-10000NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	1000	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-3600NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	3600 per revolution	Cable	Servo Mount	Incremental	Open Collector
Encoder Products Company 15S-19M1-0100NV1ROC-M00	5 V	28 V	User Selectable	12B	Shaft	100	Cable	Servo Mount	Incremental	Open Collector
