09120063041

Active

HARTING

HEAVY DUTY CONNECTOR, HAN-COMPACT® 4/2+PE POWER-SIGNAL, UL508, HAN Q SERIES, INSERT, 7 CONTACTS

Search across all available documentation for this part.

Active

HARTING

HEAVY DUTY CONNECTOR, HAN-COMPACT® 4/2+PE POWER-SIGNAL, UL508, HAN Q SERIES, INSERT, 7 CONTACTS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

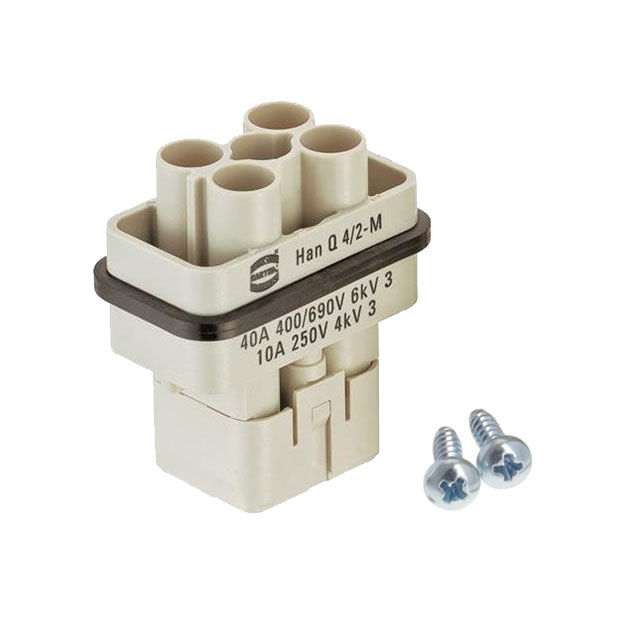

The 09120063041 from Harting is a Han® Q male insert. It is suitable for Han-Compact® series standard plastic or metal hoods/ housings.

Technical documentation and resources

Specification	09120063041	09120063 Series

Color	Gray	Gray
Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	Han® D, Han® C	Han® D, Han® C
Current Rating (Amps)	-	10 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4, 2	2 - 4
Number of Positions	Ground	Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	3 A
Termination Style	Crimp	Crimp
Voltage Rating	-	50 V

Part	Color	Housing Material	Material Flammability Rating	Connector Type	Termination Style	Gender	Number of Positions	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Current Rating (Amps)	Size	Voltage Rating
HARTING 09120063041	Gray	Polycarbonate (PC)	UL94 V-0	Insert without Contacts	Crimp	Male	2, 4	Ground	125 °C	-40 °C	Han® C, Han® D
HARTING 09120063111	Gray	Polycarbonate (PC)	UL94 V-0		Crimp	Female	2, 4	Ground	125 °C	-40 °C		10 A	3 A	50 V
HARTING 09120063001	Gray	Polycarbonate (PC)	UL94 V-0		Crimp	Male	2, 4	Ground	125 °C	-40 °C		10 A		50 V
HARTING 09120063141	Gray	Polycarbonate (PC)	UL94 V-0	Insert without Contacts	Crimp	Female	2, 4	Ground	125 °C	-40 °C	Han® C, Han® D
