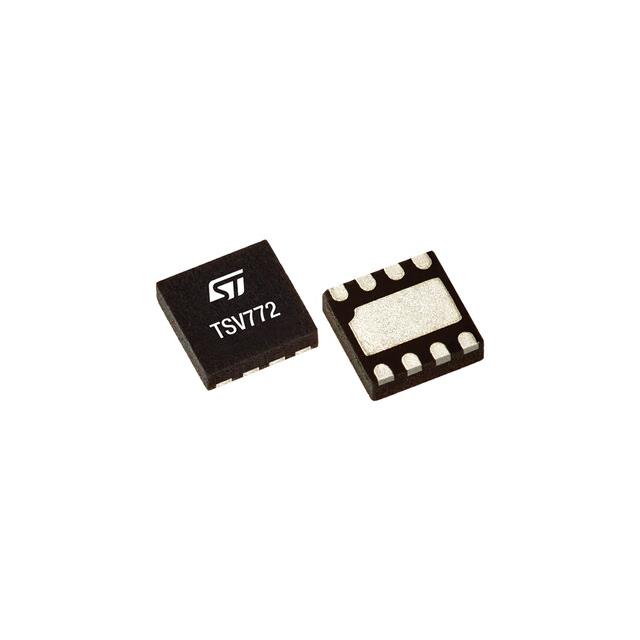

TSV772IQ2T

Active

STMicroelectronics

OPERATIONAL AMPLIFIER, RRIO, 2 CHANNELS, 20 MHZ, 13 V/ΜS, 2V TO 5.5V, DFN-EP, 8 PINS

Find alt

Alpha

TSV772IQ2T

Active

STMicroelectronics

OPERATIONAL AMPLIFIER, RRIO, 2 CHANNELS, 20 MHZ, 13 V/ΜS, 2V TO 5.5V, DFN-EP, 8 PINS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

TSV772 Series

The TSV771, TSV772 and TSV774 are single, dual and quad 20 MHz-bandwidth unity-gain-stable amplifiers. The rail-to-rail input stage and the slew rate of 10.5 V/µs make the TSV771, TSV772 and TSV774 ideal for low-side current measurement. The excellent accuracy provided by maximum input voltage of 200 µV allows amplifying accurately small-amplitude input signal.

The TSV771, TSV772 and TSV774 can operate from a 2.0 V to 5.5 V single supply and are fully characterized for an output capacitor of 47 pF, therefore allowing easy usage as A/D converters input buffer.

Technical Specifications

Parameters and characteristics for this part

Specification	TSV772IQ2T

Amplifier Type	General Purpose
Current - Input Bias	2 pA
Current - Output / Channel	65 mA
Current - Supply	1.9 mA
Gain Bandwidth Product	20 MHz
Mounting Type	Surface Mount
Number of Circuits	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	Rail-to-Rail
Package / Case	8-UFDFN Exposed Pad
Package Length	2 mm
Package Name	8-DFN
Package Width	2 mm
Slew Rate	13 V/µs
Voltage - Input Offset	200 µV

TSV772 Series

High bandwidth (20 MHz) low offset (200 µV) rail-to-rail 5 V op amp

Part	Package / Case	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Current - Input Bias	Slew Rate	Gain Bandwidth Product	Current - Output / Channel	Output Type	Number of Circuits	Current - Supply	Amplifier Type	Mounting Type	Voltage - Input Offset	Voltage - Supply Span (Max)	Qualification	Grade	Voltage - Supply Span (Min)
STMicroelectronics TSV772IQ2T	8-UFDFN Exposed Pad	2 mm	8-DFN	2 mm	125 °C	-40 °C	2 pA	13 V/µs	20 MHz	65 mA	Rail-to-Rail	2	1.9 mA	General Purpose	Surface Mount	200 µV
STMicroelectronics TSV772IYST		0.118 in	8-MiniSO 8-TSSOP 8-MSOP	3 mm	125 °C	-40 °C	2 pA	13 V/µs	20 MHz	65 mA	Rail-to-Rail	2	1.9 mA	General Purpose	Surface Mount	200 µV	5.5 V	AEC-Q100	Automotive	2 V
STMicroelectronics TSV772IYDT		0.154 in	8-SO 8-SOIC	3.9 mm	125 °C	-40 °C	2 pA	13 V/µs	20 MHz	65 mA	Rail-to-Rail	2	1.9 mA	General Purpose	Surface Mount	200 µV	5.5 V	AEC-Q100	Automotive	2 V
STMicroelectronics TSV772IDT		0.154 in	8-SO 8-SOIC	3.9 mm	125 °C	-40 °C	2 pA	13 V/µs	20 MHz	65 mA	Rail-to-Rail	2	1.9 mA	General Purpose	Surface Mount	200 µV	5.5 V			2 V
STMicroelectronics TSV772IST		0.118 in	8-MiniSO 8-TSSOP 8-MSOP	3 mm	125 °C	-40 °C	2 pA	13 V/µs	20 MHz	65 mA	Rail-to-Rail	2	1.9 mA	General Purpose	Surface Mount	200 µV	5.5 V			2 V
