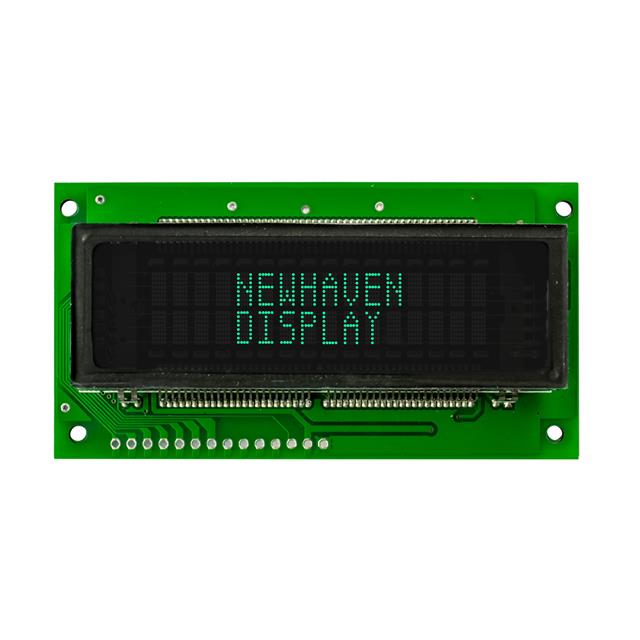

M0216SD-162SDAR8

Active

MODULE VF CHAR 2X16 5.34MM

Active

MODULE VF CHAR 2X16 5.34MM

Description

General part information

Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Parallel/Serial 84.00mm x 44.00mm x 16.60mm

Parameters and characteristics for this part

Part	Outline Width	Outline Height	Outline Length	Character Height	Character Width	Format Height (Dots)	Format Width (Dots)	Display Type	Display Rows	Display Columns	Operating Temperature (Min)	Operating Temperature (Max)	Interface	Viewing Area Width	Viewing Area Length	Voltage - Supply	Controller Type	Format	Format Height	Format Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Newhaven Display Intl M0216SD-162SDAR2-1	36 mm	18 mm	80 mm	5.34 mm	2.1 mm	8 Dots	5 Dots	Character	2	16	-40 °C	85 °C	Parallel/Serial	11.5 mm	51.8 mm	5 VDC	PT6314
Newhaven Display Intl M0216SD-162SDAR1	36 mm	19.5 mm	85 mm	4.34 mm	2.26 mm			Character	2	16	-40 °C	85 °C	Parallel/Serial	11.5 mm	51.8 mm		PT6314	CURS	7	5	5.5 V	4.5 V
Newhaven Display Intl M0216SD-162SDAR8	44 mm	16.6 mm	84 mm	5.34 mm	2.1 mm	8 Dots	5 Dots	Character	2	16	-40 °C	85 °C	Parallel/Serial			5 VDC	PT6314

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
