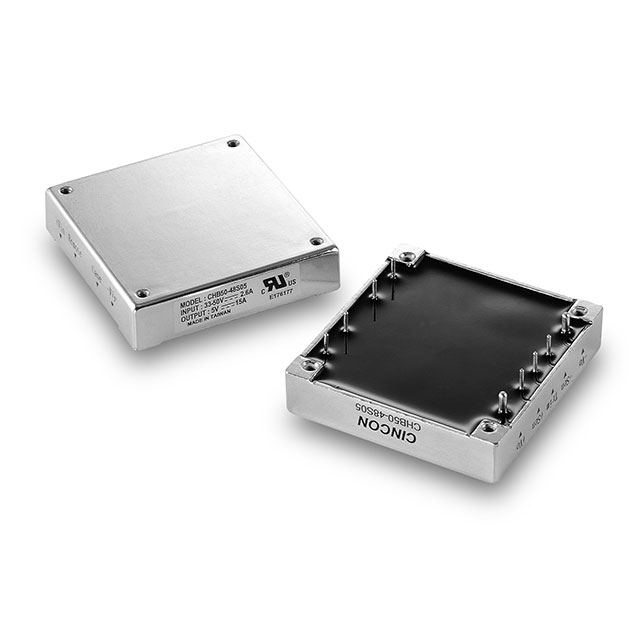

CHB50-48S12

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHB50-48S12

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHB50-48S12

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max) [Max]	4.16 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	50 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

CHB50W Series

Part	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Number of Outputs	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Features	Input Type	Control Features	Supplier Device Package	Package / Case	Standard Number
Cincon Electronics Co. LTD CHB50W-48S24-CM	ITE (Commercial)	24 V	75 V	1.5 kV	CE cURus	-40 °C	100 °C	2.08 A	Chassis Mount	18 V	Enclosed	86 %	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in	50 W	1
Cincon Electronics Co. LTD CHB50W-24S48-DIN	ITE (Commercial)	48 V		1.5 kV	CE cURus	-40 °C	100 °C	1.04 A				83 %	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in	50 W	1	36 V	9 V	Adjustable Output Remote On/Off Remote Sense	DC
Cincon Electronics Co. LTD CHB50-48S12	ITE (Commercial)	12 V	75 V	1.5 kV	CE cURus	-40 °C	100 °C	4.16 A	Through Hole	36 V	Isolated Module	88 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	50 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active High Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50-12S33N	ITE (Commercial)	3.3 V	18 V	1.5 kV	CE cURus	-40 °C	100 °C	10 A	Through Hole	9 V	Isolated Module	79 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	33 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active Low Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50-48S25	ITE (Commercial)	25 V	75 V	1.5 kV	CE cURus	-40 °C	100 °C		Through Hole	36 V	Isolated Module		12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in		1			Remote On/Off		Active High Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50W-48S33N	ITE (Commercial)	3.3 V	75 V	1.5 kV	CE cURus	-40 °C	100 °C	10 A	Through Hole	18 V	Isolated Module	81 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	33 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active Low Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50W-24S15	ITE (Commercial)	15 V	36 V	1.5 kV	CE cURus	-40 °C	100 °C	3.33 A	Through Hole	9 V	Isolated Module	85 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	50 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active High Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50W-24S28	ITE (Commercial)	28 V	36 V	1.5 kV	CE cURus	-40 °C	100 °C	1.78 A	Through Hole	9 V	Isolated Module	83 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	50 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active High Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50-12S12	ITE (Commercial)	12 V	18 V	1.5 kV	CE cURus	-40 °C	100 °C	4.16 A	Through Hole	9 V	Isolated Module	87 %	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	50 W	1			OCP OTP OVP Remote On/Off SCP UVLO		Active High Enable	Half Brick	Half Brick	60950-1
Cincon Electronics Co. LTD CHB50W-48S05-DIN	ITE (Commercial)	5 V		1.5 kV	CE cURus	-40 °C	100 °C	10 A				83 %	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in	50 W	1	75 V	18 V	Adjustable Output Remote On/Off Remote Sense	DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 67.05
		5	$ 64.55
		10	$ 63.50
		25	$ 62.14
		50	$ 61.13
		100	$ 60.13
		230	$ 43.29

Description

General part information

CHB50W Series

Isolated Module DC DC Converter 1 Output 12V 4.16A 36V - 75V Input
