8108 060100

Active

Belden Inc.

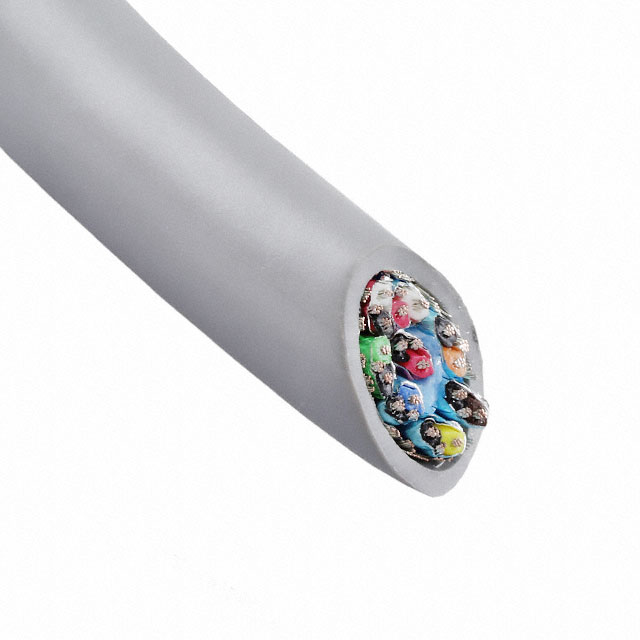

MULTI-PAIR 16COND 24AWG 100'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 24AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	8108 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.37 in
Jacket (Insulation) Diameter [diameter]	9.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Usage	Shield Material	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Cable Type	Length [x]	Length [x]	Ratings	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors
Belden Inc. 8108 060100	Computer	Aluminum Copper Tinned	Braid Foil	Copper Tinned	32 AWG	7	Drain Wire	Chrome	Multi-Pair	30.5 m	100 ft	UL Style 2919	Foam Polyethylene (FPE)	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	0.37 in	9.4 mm	24 AWG	65 % 100 %	0.889 mm	0.035 in	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (8 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
