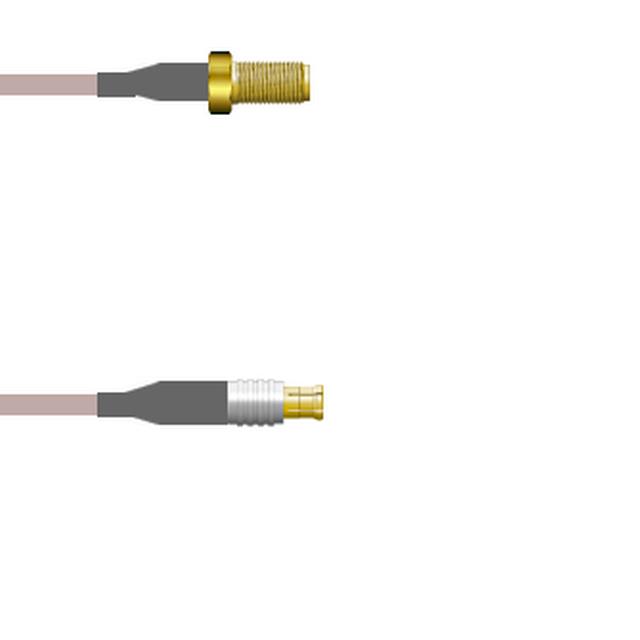

CBL ASSY SMA-MCX JACK-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2V01F0005024I

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX JACK-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V01F0005024I

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-2V01F0 Series

Part	2nd Connector	1st Contact Gender	Overall Impedance	Cable Type	1st Connector	1st Connector Mounting Type	Cable Impedance	Features	Color	Style	Frequency - Max [Max]	Length	Length	2nd Connector Mounting Type	Connector Impedance	2nd Contact Gender	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2V01F0005024I	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz	24 "	609.6 mm	Free Hanging (In-Line)	50 Ohms	Male
Amphenol Custom Cable Q-2V01F0005018I	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz			Free Hanging (In-Line)	50 Ohms	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2V01F00031.5M	MCX Plug	Female	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Black	SMA to MCX	1 GHz	59.1 in	1.5 m	Free Hanging (In-Line)	50 Ohms	Male			4.9 ft
Amphenol Custom Cable Q-2V01F0005.75M	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz	29.53 "	750 mm	Free Hanging (In-Line)	50 Ohms	Male
Amphenol Custom Cable Q-2V01F00051.5M	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz	59.1 in	1.5 m	Free Hanging (In-Line)	50 Ohms	Male			4.9 ft
Amphenol Custom Cable Q-2V01F0003012I	MCX Plug	Female	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Black	SMA to MCX	1 GHz	12 "	304.8 mm	Free Hanging (In-Line)	50 Ohms	Male
Amphenol Custom Cable Q-2V01F0005006I	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz	6 in	152.4 mm	Free Hanging (In-Line)	50 Ohms	Male
Amphenol Custom Cable Q-2V01F0003036I	MCX Plug	Female	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Black	SMA to MCX	1 GHz	36 in	91.44 cm	Free Hanging (In-Line)	50 Ohms	Male
Amphenol Custom Cable Q-2V01F0005002M	MCX Plug	Female	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Copper	SMA to MCX	3 GHz	78.7 in	2 m	Free Hanging (In-Line)	50 Ohms	Male			6.6 ft
Amphenol Custom Cable Q-2V01F0003072I	MCX Plug	Female	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	50 Ohms	Shielded	Black	SMA to MCX	1 GHz	72 in	1.8 m	Free Hanging (In-Line)	50 Ohms	Male			6 ft
