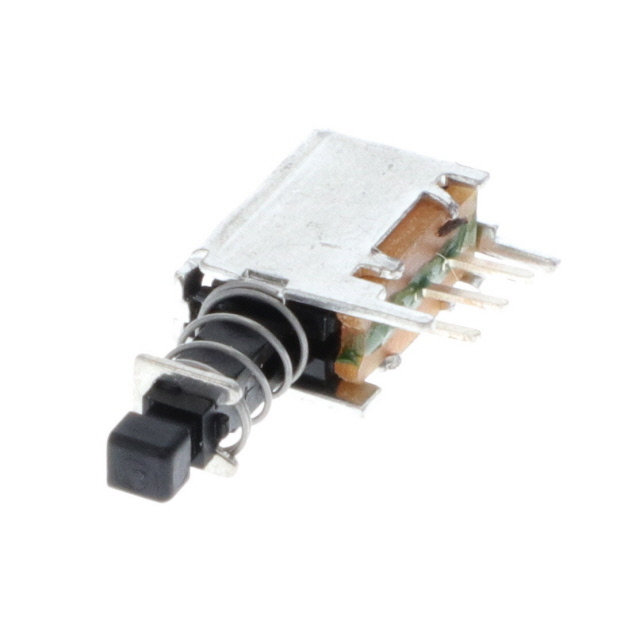

LC1258OANP

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.3A/30VDC; RCONT MAX: 20MΩ; THT

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.3A/30VDC; RCONT MAX: 20MΩ; THT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Circuit	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking	Actuator Type	Switch Function	Type	Electrical Life	Color - Actuator/Cap
E-Switch LC1258OASS	Through Hole Right Angle	SPDT	Solder Lug	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC2251EENP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC1258OANP1DBLK	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Square	On-Mom	Standard	10000 Cycles	Black
E-Switch LC2255EESP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC1258EENP1RBLK	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Round	On-On	Standard	10000 Cycles	Black
E-Switch LC2251EESP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC2255EENPTAGGRY	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Round	On-On	Standard	10000 Cycles
E-Switch LC2255OANP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC1258OASP	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC1258OANP	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle
