FCBG110SD1C03B

Active

Coherent

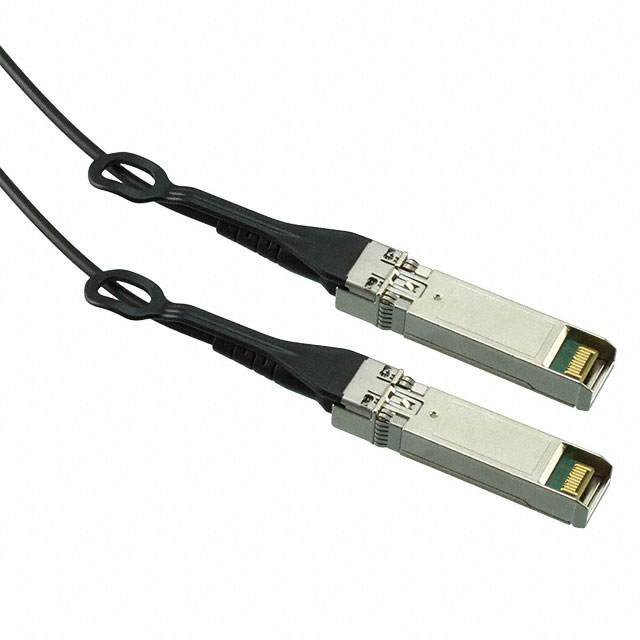

CABLE ASSY SFP+ M-M 3M

Deep-Dive with AI

Search across all available documentation for this part.

FCBG110SD1C03B

Active

Coherent

CABLE ASSY SFP+ M-M 3M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	288	$ 47.02

Description

General part information

FCBG110 Series

20 Position SFP+ Plug to Plug 9.84' (3.00m) Black Unshielded

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FCBG110SD1C03B	FCBG110 Series

Cable Connectors	SFP+	SFP+
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Push-Pull, Latch Lock	Push-Pull, Latch Lock
Features	Pull Tab, Active	Pull Tab, Passive, Active
Frequency - Max [Max]	10 Gbps	10 Gbps
Gender	Male to Male	Male to Male
Length	-	10 - 20 m
Length	-	32.81 - 65.62 ft
Length [x]	9.84 ft	3.28 - 22.97 ft
Length [x]	3 m	1 - 7 m
Number of Positions	20	20
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	External	External

FCBG110 Series

CABLE ASSY SFP+ M-M 1M

Part	Cable Connectors	Cable Type	Shielding	Color	Fastening Type	Length [x]	Length [x]	Connector Type	Gender	Operating Temperature [Max]	Usage	Number of Positions	Frequency - Max [Max]	Features	Length	Length
Coherent FCBG110SD1C01B	SFP+	Round	Unshielded	Black	Latch Lock, Push-Pull	1 m	3.28 ft	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Passive, Pull Tab
Coherent FCBG110SD1C01	SFP+	Round	Unshielded	Black		1 m	3.28 ft	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Passive, Pull Tab
Coherent FCBG110SD1C07	SFP+	Round		Black	Latch Lock, Push-Pull	7 m	22.97 '	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab
Coherent FCBG110SD1C05	SFP+	Round		Black	Latch Lock, Push-Pull			Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab
Coherent FCBG110SD1C20	SFP+	Round		Black	Latch Lock, Push-Pull			Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab	20 m	65.62 ft
Coherent FCBG110SD1C03	SFP+	Round		Black	Latch Lock, Push-Pull	3 m	9.84 ft	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab
Coherent FCBG110SD1C10B	SFP+	Round		Black	Latch Lock, Push-Pull			Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab	10 m	32.81 ft
Coherent FCBG110SD1C03B	SFP+	Round	Unshielded	Black	Latch Lock, Push-Pull	3 m	9.84 ft	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab
Coherent FCBG110SD1C10	SFP+	Round		Black	Latch Lock, Push-Pull			Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab	10 m	32.81 ft
Coherent FCBG110SD1C07B	SFP+	Round		Black	Latch Lock, Push-Pull	7 m	22.97 '	Plug to Plug	Male to Male	70 °C	External	20	10 Gbps	Active, Pull Tab
