Q-2J00B000H2.5M

Active

Amphenol Custom Cable

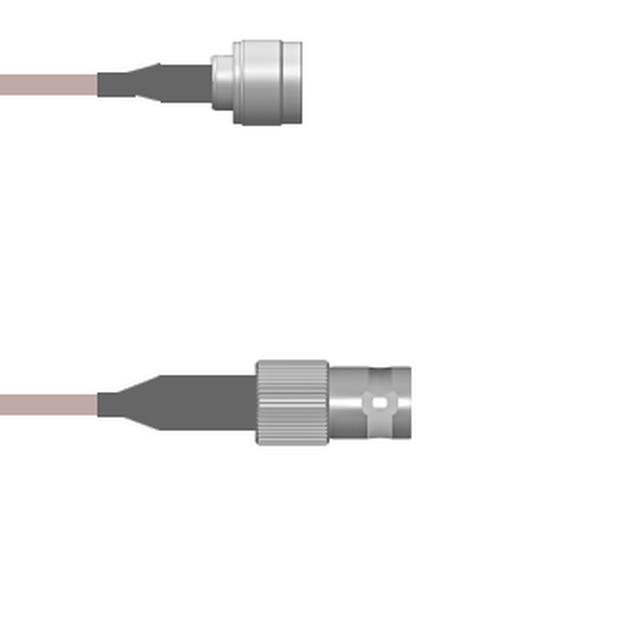

CBL ASSY BNC-NTYPE JACK-PLG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J00B000H2.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J00B000H2.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-2J00B0 Series

Part	Features	Connector Impedance	2nd Contact Gender	Color	2nd Connector Mounting Type	2nd Connector	Frequency - Max [Max]	1st Contact Gender	Cable Impedance	Style	1st Connector	Cable Type	1st Connector Mounting Type	Length	Length	Length	Overall Impedance	1st Connector Mounting Feature
Amphenol Custom Cable Q-2J00B000H002M	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	6.6 ft	78.7 in	2 m	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H005F	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	5 ft	5 '	1.5 m	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H1.5M	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	4.9 ft	59.1 in	1.5 m	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H001F	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount		12 "	304.8 mm	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H003M	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	9.8 '	118.1 in	3 m	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H009F	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	9 ft	108 in	2.7 m	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H003F	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount		36 in	91.44 cm	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00B000H2.5M	Shielded	50 Ohms	Male	Copper	Free Hanging (In-Line)	N-Type Plug	4 GHz	Female	50 Ohms	BNC to N-Type	BNC Jack	RG-142	Panel Mount	8.2 '	98.4 in	2.5 m	50 Ohms	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 148.36
		25	$ 138.06
		50	$ 127.76
		100	$ 118.92
		250	$ 111.57

Description

General part information

Q-2J00B0 Series

Cable Assembly Coaxial BNC to N-Type RG-142 98.4" (2.5m) 8.2'
