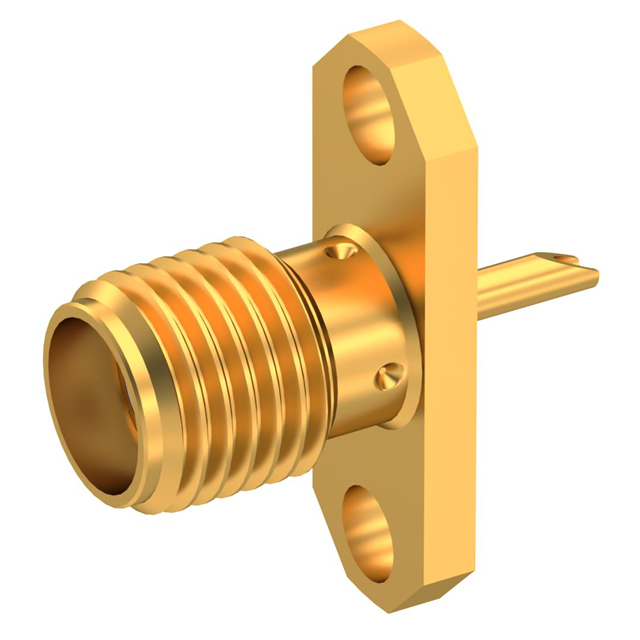

R124454123

Active

Radiall USA, Inc.

SMA / 2 HOLE FLANGE JACK RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / 2 HOLE FLANGE JACK RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R124454123

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Feature	Housing Color	Voltage Rating	Center Contact Material	Frequency - Max [Max]	Shield Termination	Body Material	Dielectric Material	Center Contact Plating	Contact Termination	Connector Style	Impedance	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports
Radiall USA, Inc. R124454120W	Flange	Silver	500 V	Beryllium Copper	18 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	Solder Cup	SMA	50 Ohms	White Bronze	Female Socket Jack	-65 ░C	165 °C	1
Radiall USA, Inc. R124454120	Flange	Silver	500 V	Beryllium Copper	18 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	Solder Cup	SMA	50 Ohms	White Bronze	Female Socket Jack	-65 ░C	165 °C	1
Radiall USA, Inc. R124454123	Flange	Gold	500 V	Beryllium Copper	18 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	Solder Cup	SMA	50 Ohms	Gold	Female Socket Jack	-65 ░C	165 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.02

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
