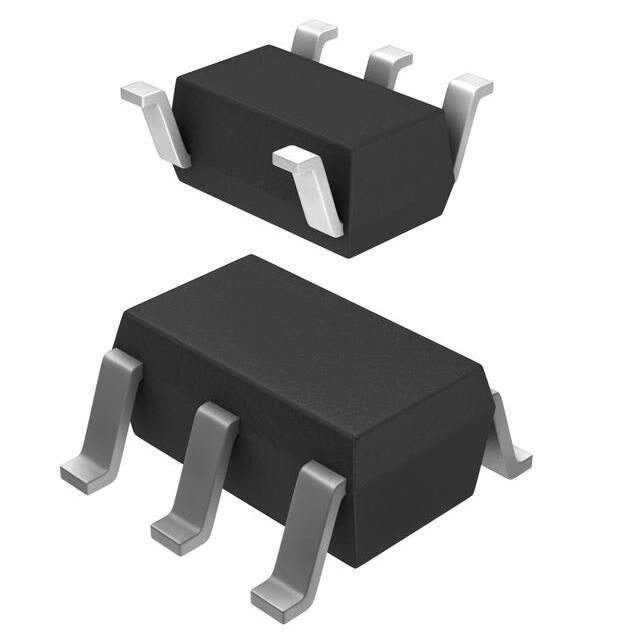

TS5205CX533 RFG
ActiveTaiwan Semiconductor Corporation
IC REG LINEAR 3.3V 150MA SOT-25
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS5205CX533 RFG
ActiveTaiwan Semiconductor Corporation
IC REG LINEAR 3.3V 150MA SOT-25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS5205CX533 RFG |
|---|---|
| Control Features | Enable, Current Limit |
| Current - Output | 150 mA |
| Current - Quiescent (Iq) | 125 µA |
| Current - Supply (Max) [Max] | 1.9 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-74A, SOT-753 |
| Protection Features | Over Temperature |
| PSRR | 75 dB |
| Supplier Device Package | SOT-25 |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.275 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 3000 | $ 0.25 | ||
| 6000 | $ 0.23 | |||
| 9000 | $ 0.22 | |||
| 15000 | $ 0.21 | |||
| 21000 | $ 0.20 | |||
| 30000 | $ 0.21 | |||
Description
General part information
TS5205 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-25
