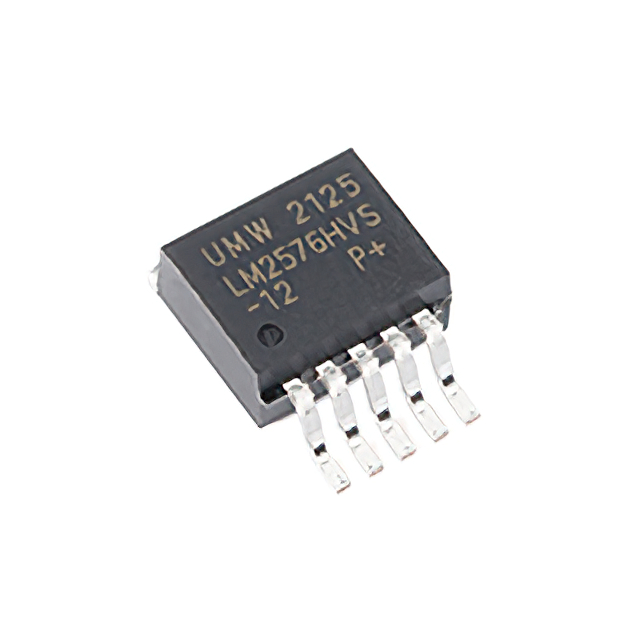

LM2576HVS-12

Active

UMW

IC REG BUCK 3A TO263-5L

Search across all available documentation for this part.

Active

UMW

IC REG BUCK 3A TO263-5L

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG BUCK 3A TO263-5L

Part	Number of Outputs	Function	Mounting Type	Voltage - Output (Max) [Max]	Current - Output	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package	Output Type	Output Configuration	Output Type	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]
UMW LM2576HVS-12	1	Step-Down	Surface Mount	12 V	3 A	Buck	-40 °C	125 °C	52 kHz	57 V	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	TO-263-5L	1.81 mOhm	Positive
UMW LM2576S-ADJ	1	Step-Down	Surface Mount		3 A	Buck	-40 °C	125 °C	52 kHz		D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	TO-263-5L		Positive	Adjustable	37 V
UMW LM2576HVS-ADJ	1	Step-Down	Surface Mount		3 A	Buck	-40 °C	125 °C	52 kHz	57 V	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	TO-263-5L		Positive	Adjustable	57 V
UMW LM2576S-3.3	1	Step-Down	Surface Mount		3 A	Buck	-40 °C	125 °C	52 kHz		D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	TO-263-5L	1.81 mOhm	Positive			3.3 V	4 V
UMW LM2576HVS-5.0	1	Step-Down	Surface Mount		3 A	Buck	-40 °C	125 °C	52 kHz	57 V	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	TO-263-5L	1.81 mOhm	Positive		5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
