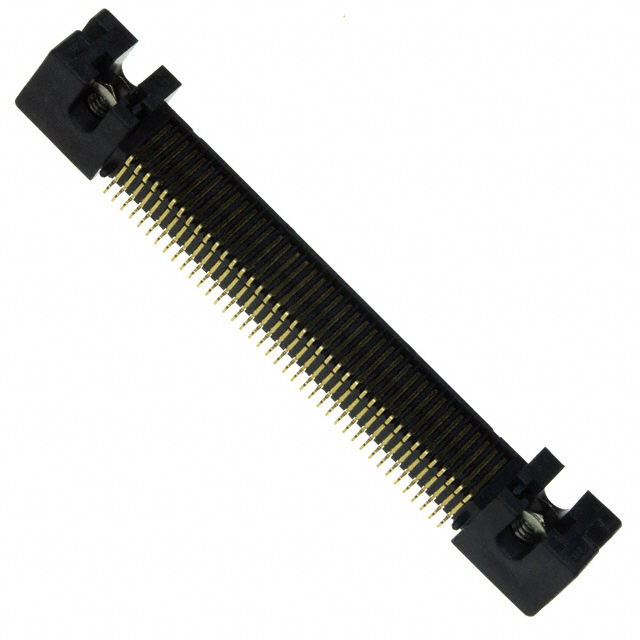

KX15-80NLNL
ObsoleteJAE Electronics
CONN PLUG 80POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KX15-80NLNL
ObsoleteJAE Electronics
CONN PLUG 80POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KX15-80NLNL |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 0.226 in |
| Height Above Board | 5.74 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KX15-80N Series
80 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
