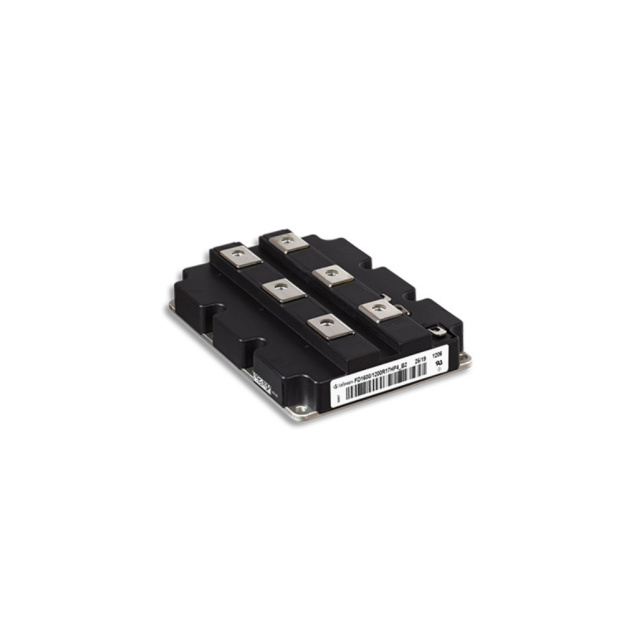

FD1000R33HE3KBPSA1

Active

Infineon Technologies

THE FD1000R33HE3-K IS A CHOPPER IGBT3 - E3 MODULE IN A IHV B HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 3300 V AND 1000 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FD1000R33HE3-K IS A CHOPPER IGBT3 - E3 MODULE IN A IHV B HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 3300 V AND 1000 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FD1000R33HE3KBPSA1

Configuration	Dual Brake Chopper
Current - Collector (Ic) (Max) [Max]	1 kA
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	190 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Package / Case	Module
Power - Max [Max]	11500 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	3.1 V
Voltage - Collector Emitter Breakdown (Max)	3300 V

Part	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - Collector Cutoff (Max) [Max]	IGBT Type	Mounting Type	Configuration	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	NTC Thermistor	Input
Infineon Technologies FD1000R33HE3KBPSA1	3.1 V	3300 V	Module	5 mA	Trench Field Stop	Chassis Mount	Dual Brake Chopper	1 kA	11500 W	190 nF	Module		Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1630.20

General part information

IHV B 3300 V, 1000 A 190mm chopperIGBT Modulewith IGBT3 - The best solution for your medium voltage and drives applications.
