TL1260GQRBLK

Active

E-Switch

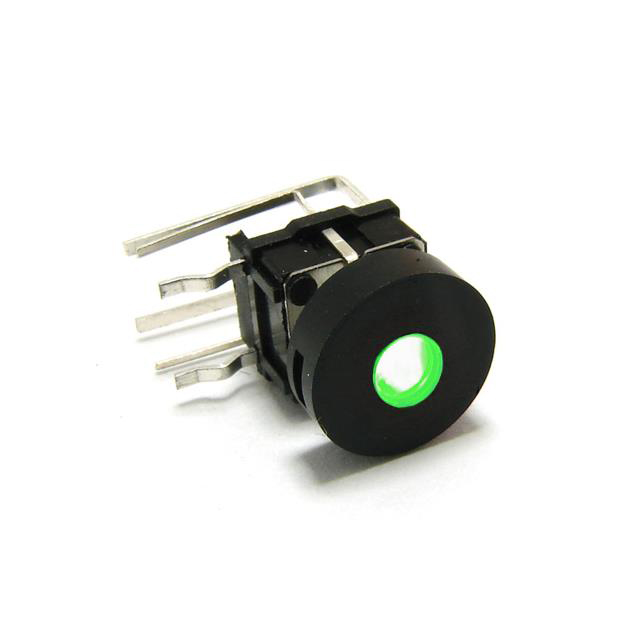

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL1260GQRBLK

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1260GQRBLK

Actuator Length, Right Angle	6.85 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Side Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Black Cap
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.3 VDC
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1260 Series

Part	Circuit	Illumination	Termination Style	Actuator Length, Right Angle	Mounting Type	Illumination Type, Color	Actuator Material	Switch Travel	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Contact Rating @ Voltage	Actuator Orientation	Outline [y]	Outline [x]	Switch Function	Features
E-Switch TL1260GQRBLKSWITCHTACTRT	SPST-NO	Illuminated	PC Pin	7.05 mm	Through Hole Right Angle	Green LED	Polybutylene Terephthalate (PBT)	0.2 mm	2.3 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom
E-Switch TL1260BQRBLKSWITCHTACTRT	SPST-NO	Illuminated	PC Pin	7.05 mm	Through Hole Right Angle	Blue LED	Polybutylene Terephthalate (PBT)	0.2 mm	3.7 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom
E-Switch TL1260YQRYEL	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	LED Yellow	Polybutylene Terephthalate (PBT)	0.2 mm	2.3 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Yellow Cap
E-Switch TL1260RQRGRY	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	LED Red	Polybutylene Terephthalate (PBT)	0.2 mm	3.5 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Gray Cap
E-Switch TL1260BQSCLR	SPST-NO	Illuminated	PC Pin	11.1 mm	Through Hole Right Angle	Blue LED	Polybutylene Terephthalate (PBT)	0.2 mm	3.7 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom
E-Switch TL1260GQRBLK	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	Green LED	Polybutylene Terephthalate (PBT)	0.2 mm	2.3 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Black Cap
E-Switch TL1260RQRBLK	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	LED Red	Polybutylene Terephthalate (PBT)	0.2 mm	3.5 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Black Cap
E-Switch TL1260GYQRBLK	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	Green LED Yellow	Polybutylene Terephthalate (PBT)	0.2 mm	2.3 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Black Cap
E-Switch TL1260YQRBLK	SPST-NO	Illuminated	PC Pin	6.85 mm	Through Hole Right Angle	LED Yellow	Polybutylene Terephthalate (PBT)	0.2 mm	2.3 VDC	-20 C	70 °C	Round Button	0.05 A 12 VDC	Side Actuated	6.8 mm	7 mm	Off-Mom	Black Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.04
		10	$ 3.28
		25	$ 3.01
		100	$ 2.65
		250	$ 2.42
		500	$ 2.27
		1000	$ 2.12
		2500	$ 1.93
		5000	$ 1.82

Description

General part information

TL1260 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
