Technical Specifications
Parameters and characteristics for this part
| Specification | SD2941-10W |
|---|---|
| Configuration | N-Channel |
| Current - Test | 250 mA |
| Current Rating (Amps) | 20 A |
| Frequency | 175 MHz |
| Gain | 15.8 dB |
| Package / Case | M174 |
| Power - Output | 175 W |
| Supplier Device Package | M174 |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Rated | 130 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SD2941-10 Series

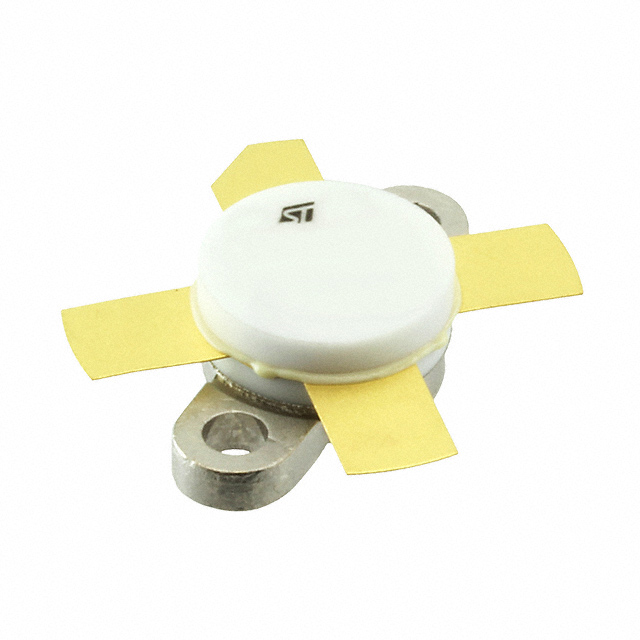

The SD2941-10 is a gold metalized N-channel MOS field-effect RF power transistor, intended for use in 28 V to 50 V dc large signal applications up to 230 MHz. It offers 25% lower RDS(on)than the industry standard, with 20% higher PSATthan ST's SD2931-10 device. The SD2941-10 is housed in the low thermal M174 non-pedestal package, offering 25% lower thermal resistance than the industry standard, thus rendering it the "best-in-class" transistor for ISM applications, where reliability and ruggedness are critical factor.
