HW-18-10-L-S-415-SM-LC

Active

Samtec Inc.

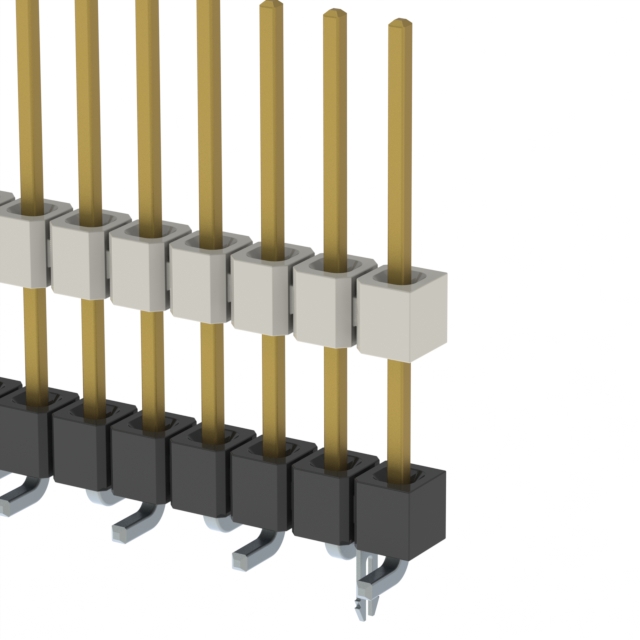

VERTICAL WELDING GOLD 18P 2.54MM BLACK SINGLE ROW SMD,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-18-10-L-S-415-SM-LC

Active

Samtec Inc.

VERTICAL WELDING GOLD 18P 2.54MM BLACK SINGLE ROW SMD,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-18-10-L-S-415-SM-LC

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	0.35 in
Length - Post (Mating) [x]	8.89 mm
Length - Stack Height [x]	0.415 in
Length - Stack Height [x]	10.541 mm
Mounting Type	Surface Mount
Number of Positions	18
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-18-10 Series

Part	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Color	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Length - Overall Pin [x]	Length - Tail	Length - Tail
Samtec Inc. HW-18-10-L-D-450-SM-A	Solder	0.25 Ám	10 Áin	Surface Mount	2	0.45 in	11.43 mm	19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.315 in	8 mm	Gold	2.54 mm	0.1 in	Black
Samtec Inc. HW-18-10-FM-D-615-SM	Solder	0.076 Ám	3 Áin	Surface Mount	2			19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.15 in	3.81 mm	Gold	2.54 mm	0.1 in	Black	15.621 mm	0.615 in
Samtec Inc. HW-18-10-F-D-515-SM	Solder	0.076 Ám	3 Áin	Surface Mount	2			19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.25 in	6.35 mm	Gold	2.54 mm	0.1 in	Black	13.081 mm	0.515 in
Samtec Inc. HW-18-10-L-S-415-SM	Solder	0.25 Ám	10 Áin	Surface Mount	1			19.431 mm	0.765 in			18	0.35 in	8.89 mm	Gold	2.54 mm	0.1 in	Black	10.541 mm	0.415 in
Samtec Inc. HW-18-10-L-S-415-SM-LC	Solder	0.25 Ám	10 Áin	Surface Mount	1			19.431 mm	0.765 in			18	0.35 in	8.89 mm	Gold	2.54 mm	0.1 in	Black	10.541 mm	0.415 in
Samtec Inc. HW-18-10-G-D-560-SM	Solder	0.25 Ám	10 Áin	Surface Mount	2	0.56 in	14.224 mm	19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.205 in	5.207 mm	Gold	2.54 mm	0.1 in	Black
Samtec Inc. HW-18-10-S-S-340-130	Solder	0.76 µm	30 µin	Through Hole	1			21.082 mm				18	0.36 in	9.144 mm	Gold	2.54 mm	0.1 in	Black	8.636 mm	0.34 in	3.302 mm	0.13 in	0.83 in
Samtec Inc. HW-18-10-S-S-340-190	Solder	0.76 µm	30 µin	Through Hole	1			21.082 mm				18	0.3 in	7.62 mm	Gold	2.54 mm	0.1 in	Black	8.636 mm	0.34 in			0.83 in	4.826 mm	0.19 in
Samtec Inc. HW-18-10-L-D-250-SM	Solder	0.25 Ám	10 Áin	Surface Mount	2			19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.515 in	13.081 mm	Gold	2.54 mm	0.1 in	Black	6.35 mm	0.25 in
Samtec Inc. HW-18-10-S-D-540-SM-A	Solder	0.76 µm	30 µin	Surface Mount	2			19.431 mm	0.765 in	0.1 in	2.54 mm	36	0.225 in	5.715 mm	Gold	2.54 mm	0.1 in	Black	13.716 mm	0.54 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 4.09
LCSC	Piece	1	$ 11.34
		200	$ 4.53
		500	$ 4.38
		1000	$ 4.30

Description

General part information

HW-18-10 Series

18 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
