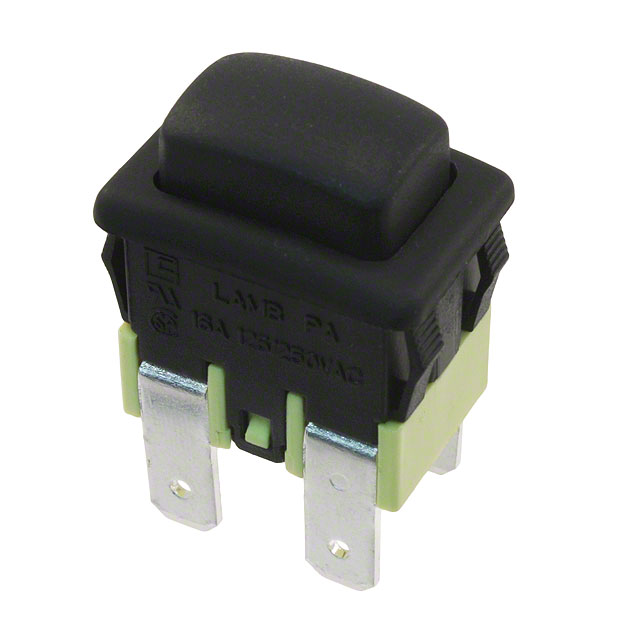

PA412C1100

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPST; 16A/250VAC; BLACK; ON PANEL; PA4

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPST; 16A/250VAC; BLACK; ON PANEL; PA4

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Color - Actuator/Cap	Termination Style	Actuator Marking	Current Rating (Amps)	Mounting Type	Electrical Life	Type	Circuit	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch PA414C1100	Off-Mom	Black	Quick Connect - 0.187" (4.7mm)	No Marking	16 A	Panel Mount Snap-In	10000 Cycles	Standard	SPST-NO	125 V	Rectangular Button	19 mm	13 mm
E-Switch PA412C1100	Off-On	Black	Quick Connect - 0.187" (4.7mm)	No Marking	16 A	Panel Mount Snap-In	10000 Cycles	Standard	DPST	125 V	Rectangular Button	19 mm	13 mm
E-Switch PA414C1000-136	Off-Mom	Green	Quick Connect - 0.187" (4.7mm)	No Marking	16 A	Panel Mount Snap-In	10000 Cycles	Illuminated Standard	SPST-NO	125 V	Rectangular Button	19 mm	13 mm	125 VAC	Green Neon
E-Switch PA414C1900	Off-Mom	Red	Quick Connect - 0.187" (4.7mm)	No Marking	16 A	Panel Mount Snap-In	10000 Cycles	Standard	SPST-NO	125 V	Rectangular Button	19 mm	13 mm
E-Switch PA412C1000-116	Off-On	Red	Quick Connect - 0.187" (4.7mm)	No Marking	16 A	Panel Mount Snap-In	10000 Cycles	Illuminated Standard	DPST	125 V	Rectangular Button	19 mm	13 mm	125 VAC	Neon Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard Panel Mount, Snap-In
