395-041-520-108
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-041-520-108
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-041-520-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 41 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-041 Series
...
| Part | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Number of Rows | Termination | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Type | Read Out | Gender | Contact Type | Contact Finish | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Solder | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | ||||||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Solder | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Solder | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Solder | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |||
EDAC Inc. | 41 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Black | 1 | Wire Wrap | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Gold | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-041 Series

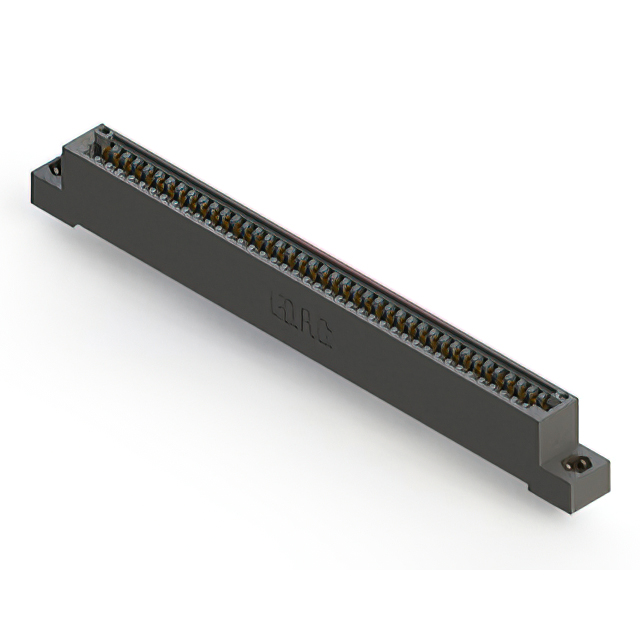

41 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
