PHN.2F.319.XLM

Active

LEMO

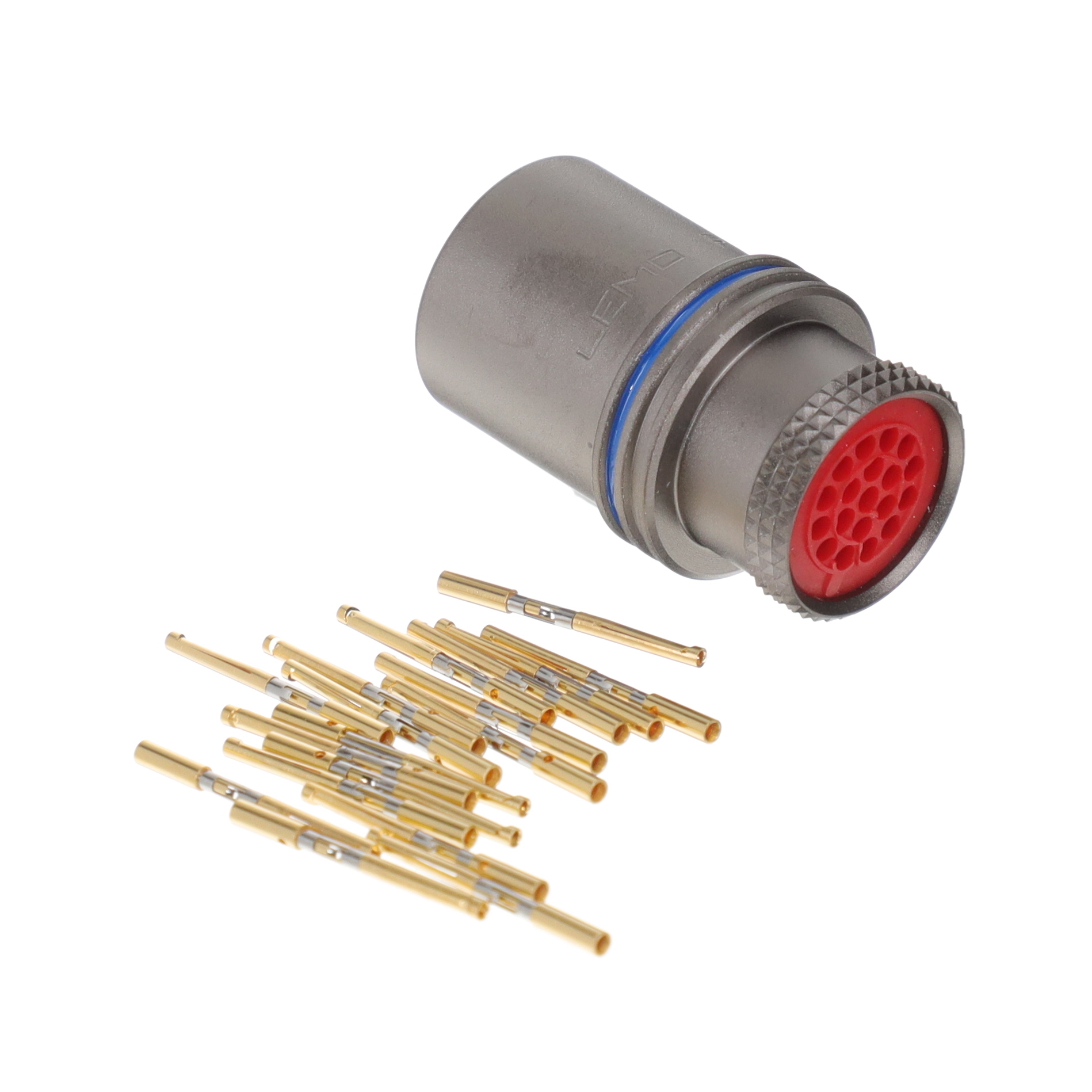

CONN RCPT FMALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 19POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PHN.2F.319.XLM	PHN.2F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	14 mm	14 mm
Cable Opening [custom]	0.551 in	0.551 in
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 - 8 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	19	10 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	319	310 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT FMALE 19POS GOLD CRIMP

Part	Shell Material	Primary Material	Number of Positions	Insert Material	Contact Finish - Mating	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shielding	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Mounting Type	Orientation	Shell Finish	Material Flammability Rating	Applications	Color	Ingress Protection
LEMO PHN.2F.319.XLM	Aluminum Alloy	Metal	19	Polyetheretherketone (PEEK)	Gold	Crimp	Push-Pull	59 Áin	1.5 Ám	319	Shielded	Bronze	200 °C	-15 °C	Receptacle, Female Sockets	14 mm	0.551 in	5 A	Free Hanging (In-Line)	N	Nickel	UL94 V-0	Aerospace	Gray	IP67 - Dust Tight, Waterproof
LEMO PHN.2F.310.XLM	Aluminum Alloy	Metal	10	Polyetheretherketone (PEEK)	Gold	Crimp	Push-Pull	59 Áin	1.5 Ám	310	Shielded	Bronze	200 °C	-15 °C	Receptacle, Female Sockets	14 mm	0.551 in	8 A	Free Hanging (In-Line)	N	Nickel	UL94 V-0	Aerospace	Gray	IP67 - Dust Tight, Waterproof
