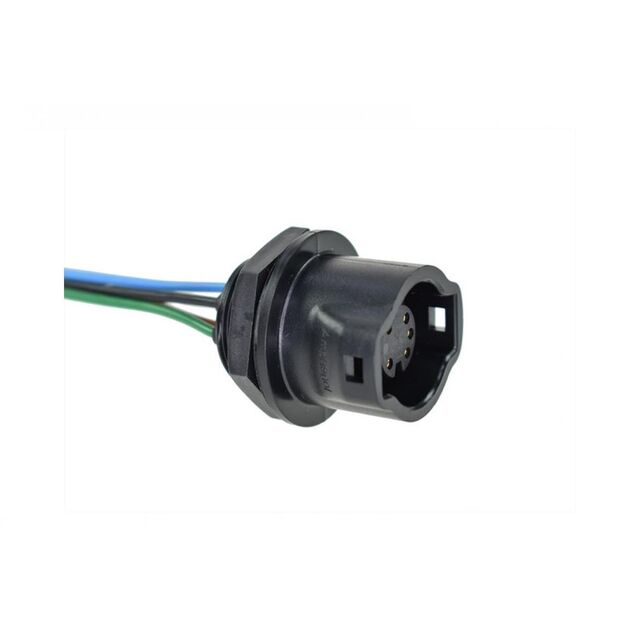

DD-10RFFC-RC7B10 - DD-10RFFC-RC7B10

DD-10RFFC-RC7B10

Active
Amphenol LTW

RBL, LARGE SIZE, PLASTIC, 5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK WITH LATCH, CRIMP, RECEPTACLE WITH

Deep-Dive with AI

Search across all available documentation for this part.

DD-10RFFC-RC7B10 - DD-10RFFC-RC7B10

DD-10RFFC-RC7B10

Active
Amphenol LTW

RBL, LARGE SIZE, PLASTIC, 5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK WITH LATCH, CRIMP, RECEPTACLE WITH

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationDD-10RFFC-RC7B10
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)5 A
Fastening TypeSnap In, Latch Holder
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mounting FeatureBulkhead - Front Side Nut
Number of Positions18
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialPolyphenylene Ether (PPE), Modified
Shell Size - InsertD
ShieldingUnshielded
TerminationWire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 10$ 15.01
NewarkEach 10$ 15.95
25$ 14.65
50$ 13.08
100$ 12.03
250$ 11.68

Description

General part information

DD-10RFFC Series

18 Position Circular Connector Receptacle, Female Sockets Wire Leads

Documents

Technical documentation and resources

No documents available
