794120-2

Active

TE Connectivity AMP Connectors

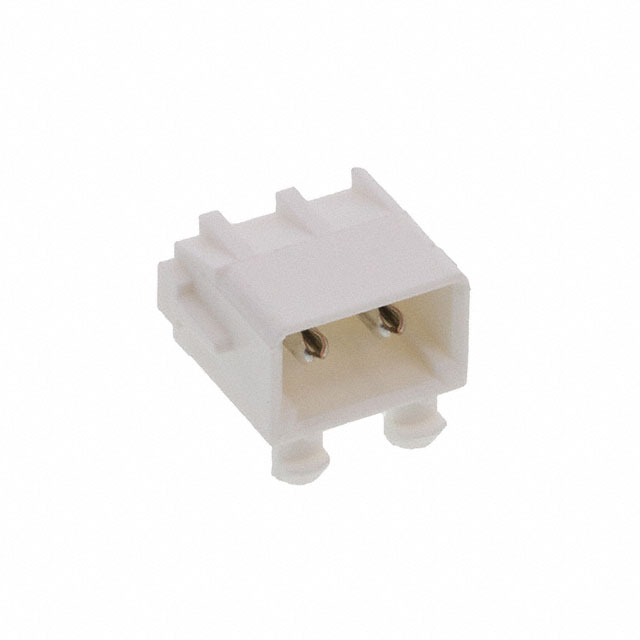

CONN HEADER R/A 2POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 2POS 5.08MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794120-2	794120 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post [x]	3.56 mm	3.56 mm
Contact Length - Post [x]	0.14 in	0.14 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	12 A	12 A
Fastening Type	Detent Lock	Detent Lock, Locking Ramp
Features	Board Guide, Board Lock	Board Guide, Board Lock
Insulation Color	Natural	Natural
Insulation Height [z]	8.76 mm	8.76 mm
Insulation Height [z]	0.345 "	0.345 "
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-2
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	5.08 mm	5.08 mm
Pitch - Mating	0.2 in	0.2 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER R/A 2POS 5.08MM

Part	Voltage Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Shrouding	Contact Type	Number of Rows	Applications	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Style	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Features	Contact Finish - Post	Material Flammability Rating	Insulation Color	Insulation Material
TE Connectivity AMP Connectors 794120-2	250 VAC	2	5.08 mm	0.2 in	Shrouded - 4 Wall	Male Pin	1	General Purpose	Header	Detent Lock	105 ░C	-55 °C	8.76 mm	0.345 "	Solder	Circular	3.56 mm	0.14 in	Board to Cable/Wire	Copper Alloy	All	12 A	Through Hole, Right Angle	Board Guide, Board Lock	Tin	UL94 V-0	Natural	Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 794120-1	250 VAC	2	5.08 mm	0.2 in	Shrouded - 4 Wall	Male Pin	1	General Purpose	Header	Locking Ramp	105 ░C	-55 °C	8.76 mm	0.345 "	Solder	Circular	3.56 mm	0.14 in	Board to Cable/Wire	Copper Alloy	All	12 A	Through Hole, Right Angle	Board Guide, Board Lock	Tin	UL94 V-2	Natural	Nylon, Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1600	$ 1.31

General part information

Connector Header Through Hole, Right Angle 2 position 0.200" (5.08mm)
