M85049/49-2S22W
ActiveAmphenol Interconnect India

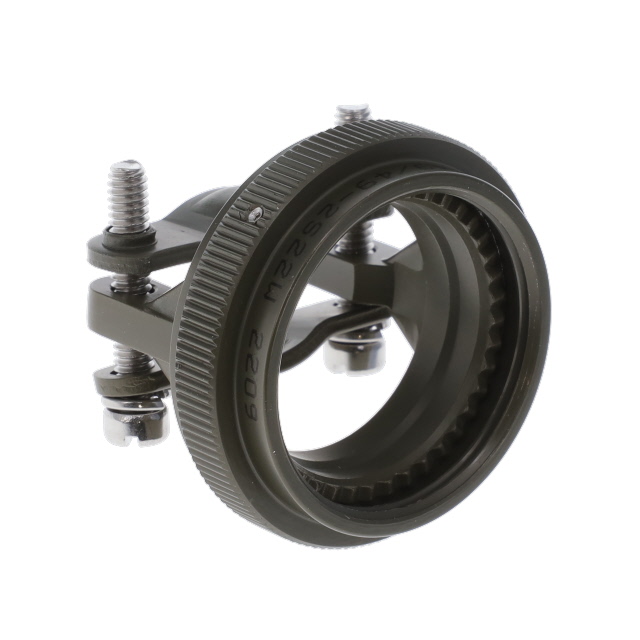

CONN CABLE CLAMP SZ22 OLIVE
Deep-Dive with AI
Search across all available documentation for this part.
M85049/49-2S22W
ActiveAmphenol Interconnect India
CONN CABLE CLAMP SZ22 OLIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M85049/49-2S22W | M85049/49 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Cable Opening | - | 4.83 - 8.33 mm |
| Cable Opening | - | 0.19 - 0.328 in |
| Cable Opening | - | 5.94 - 20.9 mm |
| Cable Opening | - | 3.89 - 9.68 mm |
| Cable Opening | - | 0.153 - 0.381 in |
| Cable Opening | - | 0.234 - 0.823 in |
| Cable Opening [custom] | 16.26 mm, 24.38 mm | 6.6 - 24.38 mm |
| Cable Opening [custom] | 0.64 in, 0.96 in | 0.26 - 0.96 in |
| Color | Olive | Silver, Olive Drab, Olive |
| Diameter - Outside [diameter] | 44.7 mm | 21.59 - 44.7 mm |
| Diameter - Outside [diameter] | 1.76 in | 0.85 - 1.76 in |
| Features | Clamp Screws, Self-Locking | Clamp Screws, Self-Locking |
| For Use With/Related Products | MIL-DTL-38999 Series I, II | MIL-DTL-27599, MIL-DTL-38999 Series II, MIL-DTL-38999 Series I, MIL-DTL-38999 Series I, II |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | Cadmium | Electroless Nickel, Cadmium, Cadmium Nickel |
| Shell Size - Insert | 22 | 10 - 23 |
| Shielding | Unshielded | Unshielded |
| Thread Size | - | 11/16-24 UNEF, 15/16-20 UNEF, 13/16-20 UNEF |
| Type | Cable Clamp | Cable Clamp |
M85049/49 Series
CONN CAB CLMP SZ12 SIL 11/16-24
| Part | Plating | Shell Size - Insert | Cable Exit | Thread Size | Shielding | Color | Material | Features | For Use With/Related Products | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M85049/49-2-12N | Electroless Nickel | 12 | 180 ° | 11/16-24 UNEF | Unshielded | Silver | Aluminum Alloy | Clamp Screws | MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II | Cable Clamp | ||||||||||
Amphenol Interconnect India M85049/49-2S12W | Cadmium | 12, 13 | 180 ° | Unshielded | Olive Drab | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-38999 Series I, II | Cable Clamp | 29.36 mm | 1.156 in | 4.83 mm, 8.33 mm | 0.19 in, 0.328 in | |||||||
Amphenol Interconnect India M85049/49-2-18W | Cadmium | 180 ° | Unshielded | Olive Drab | Aluminum Alloy | Clamp Screws | MIL-DTL-38999 Series I, II | Cable Clamp | 35.56 mm | 1.4 in | 16.1 mm | 8.25 mm | 0.325 in | 0.634 in | ||||||
Amphenol Interconnect India M85049/49-2S12N | Electroless Nickel | 12, 13 | 180 ° | Unshielded | Silver | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-38999 Series I, II | Cable Clamp | 29.36 mm | 1.156 in | 4.83 mm, 8.33 mm | 0.19 in, 0.328 in | |||||||
Amphenol Interconnect India M85049/49-2S10W | Cadmium | 10, 11 | 180 ° | Unshielded | Olive Drab | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-38999 Series I, II | Cable Clamp | 25 mm | 0.984 " | 5.94 mm | 3.89 mm | 0.153 in | 0.234 in | |||||
Amphenol Interconnect India M85049/49-2-22W | Cadmium | 22, 23 | 180 ° | Unshielded | Olive Drab | Aluminum Alloy | Clamp Screws | MIL-DTL-38999 Series I, II | Cable Clamp | 41.91 mm | 1.65 " | 20.9 mm | 9.68 mm | 0.381 in | 0.823 in | |||||
Amphenol Interconnect India M85049/49-2S22W | Cadmium | 22 | 180 ° | Unshielded | Olive | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-38999 Series I, II | Cable Clamp | 44.7 mm | 1.76 in | 16.26 mm, 24.38 mm | 0.64 in, 0.96 in | |||||||
Amphenol Interconnect India M85049/49-2S20N | Electroless Nickel | 20, 21 | 180 ° | Unshielded | Silver | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-38999 Series I, II | Cable Clamp | 41.68 mm | 1.641 " | 17.73 mm | 8.71 mm | 0.343 in | 0.698 in | |||||
Amphenol Interconnect India M85049/49-2S16W | Cadmium Nickel | 16 | 180 ° | 15/16-20 UNEF | Unshielded | Olive | Aluminum Alloy | Clamp Screws, Self-Locking | MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II | Cable Clamp | ||||||||||
Amphenol Interconnect India M85049/49-2-14W | Cadmium Nickel | 14 | 180 ° | 13/16-20 UNEF | Unshielded | Olive | Aluminum Alloy | Clamp Screws | MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II | Cable Clamp |
