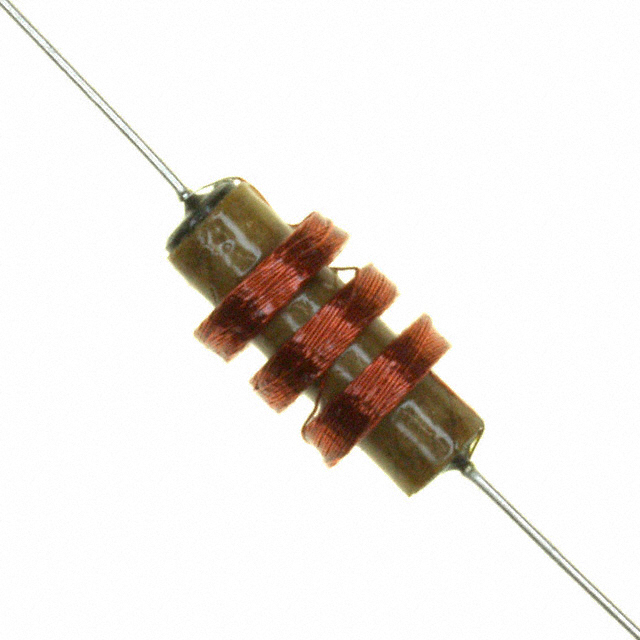

6304-RC
ObsoleteBourns Inc.
FIXED IND 5MH 160MA 14 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6304-RC
ObsoleteBourns Inc.
FIXED IND 5MH 160MA 14 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6304-RC |
|---|---|
| Current Rating (Amps) | 160 mA |
| DC Resistance (DCR) | 14 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Inductance | 5 mH |
| Inductance Frequency - Test | 252 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 80, 252 kHz |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.53 " |
| Size / Dimension [diameter] | 13.46 mm |
| Size / Dimension [x] | 22.22 mm |
| Size / Dimension [x] | 0.875 in |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6304 Series
5 mH Unshielded Drum Core, Wirewound Inductor 160 mA 14Ohm Max Axial
