TL6275BA2PQRG

Active

E-Switch

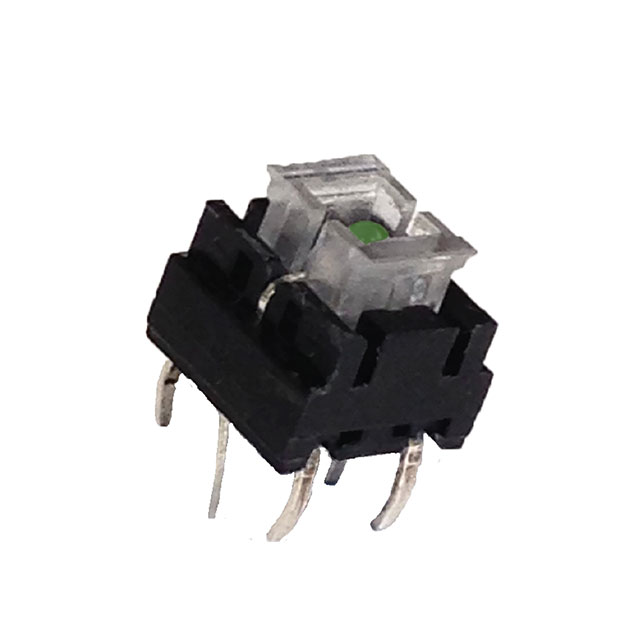

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6275BA2PQRG	TL6275 Series

Actuator Height off PCB, Vertical [z]	11.15 mm	11.15 - 16.2 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Green	LED, Green, Red
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	350 gf	350 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	8 mm	8 mm
Outline [y]	8 mm	8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Contact Rating @ Voltage	Switch Travel	Termination Style	Operating Force	Illumination	Outline [y]	Outline [x]	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Switch Function	Actuator Type	Illumination Type, Color	Actuator Height off PCB, Vertical [z]
E-Switch TL6275BA2PQRG	Through Hole	0.05 A, 12 VDC	0.25 mm	PC Pin	350 gf	Illuminated	8 mm	8 mm	Top Actuated	70 °C	-25 °C	SPST-NO	100000 Cycles	Off-Mom	Round Button	Green, LED	11.15 mm
E-Switch TL6275BA2PQUR	Through Hole	0.05 A, 12 VDC	0.25 mm	PC Pin	350 gf	Illuminated	8 mm	8 mm	Top Actuated	70 °C	-25 °C	SPST-NO	100000 Cycles	Off-Mom	Round Button	LED, Red	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
