TFC-103-01-F-D-RA
ActiveSamtec Inc.
.050 X .050 TERMINAL STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TFC-103-01-F-D-RA |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Length - Mating | 3.61 mm |
| Contact Length - Mating | 0.142 in |
| Contact Length - Post | 1.91 mm |
| Contact Length - Post [x] | 0.075 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 350 VAC |
TFC-103 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Termination | Insulation Material | Shrouding | Features | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type | Contact Finish - Post | Fastening Type | Contact Length - Mating | Contact Length - Mating | Voltage Rating | Number of Positions Loaded | Number of Rows | Current Rating (Amps) | Contact Finish - Mating | Insulation Color | Material Flammability Rating | Style | Insulation Height | Insulation Height | Contact Shape | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | Pick and Place | 0.05 in | 1.27 mm | Surface Mount | 3 µin | 0.076 µm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.226 in | 5.74 mm | Square | Phosphor Bronze | |||
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | Pick and Place | 0.05 in | 1.27 mm | Surface Mount | 10 çin | 0.25 çm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.226 in | 5.74 mm | Square | Phosphor Bronze | |||
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | Board Guide Pick and Place | 0.05 in | 1.27 mm | Surface Mount | 10 çin | 0.25 çm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.226 in | 5.74 mm | Square | Phosphor Bronze | |||
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Through Hole | 10 çin | 0.25 çm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.22 in | 5.6 mm | Square | Phosphor Bronze | 0.078 in | 1.98 mm | ||
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | Pick and Place | 0.05 in | 1.27 mm | Through Hole | 3 µin | 0.076 µm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.22 in | 5.6 mm | Square | Phosphor Bronze | 0.078 in | 1.98 mm | |
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Through Hole Right Angle | 3 µin | 0.076 µm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.61 mm | 0.142 in | 350 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.22 in | 5.6 mm | Square | Phosphor Bronze | 0.075 in | 1.91 mm | ||
Samtec Inc. | 0.05 in | 1.27 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Surface Mount | 3 µin | 0.076 µm | -55 °C | 125 °C | Header | Male Pin | Tin | Push-Pull | 3.33 mm | 0.131 in | 275 VAC | All | 2 | 3.1 A | Gold | Black | UL94 V-0 | Board to Board Cable | 0.226 in | 5.74 mm | Square | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 82 | $ 1.51 | |
Description
General part information
TFC-103 Series

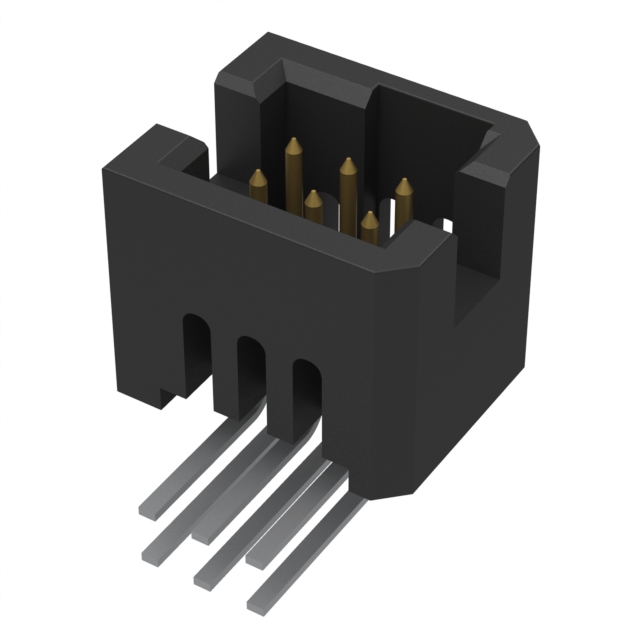

Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm)
