BMC050-SHUTL

Obsolete

Bosch Sensortec

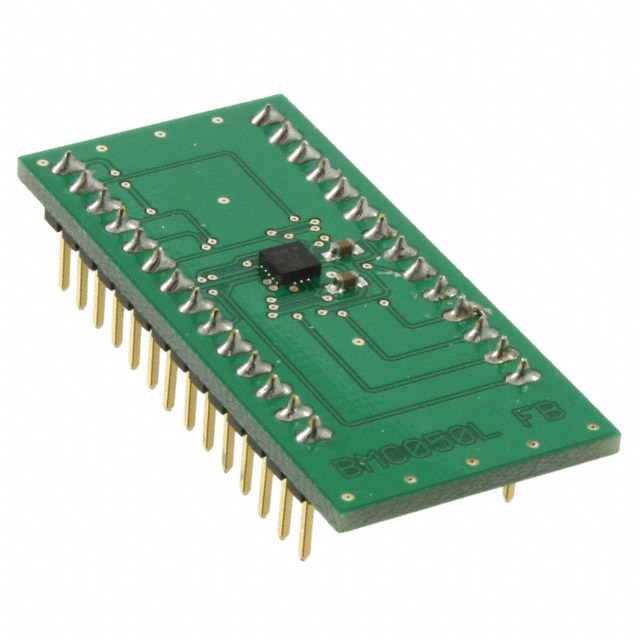

SHUTTLE BOARD BMC050

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMC050

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMC050-SHUTL	BMC050 Series

Contents	Board(s)	Board(s)
Function	Magnetometer	Magnetometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Sensor Type	-	6 Axis, Accelerometer, Magnetometer
Supplier Device Package	-	16-LGA (3x3)
Type	Sensor	Sensor
Utilized IC / Part	BMC050	BMC050

SHUTTLE BOARD BMC050

Part	Utilized IC / Part	Function	Contents	Type	Mounting Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package
Bosch Sensortec BMC050-SHUTL	BMC050	Magnetometer	Board(s)	Sensor
Bosch Sensortec BMC050					Surface Mount	6 Axis, Accelerometer, Magnetometer	85 °C	-40 °C	I2C, SPI	16-LGA (3x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMC050 Magnetometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources

No documents available
