83153C
ActiveMurata Power Solutions Inc.

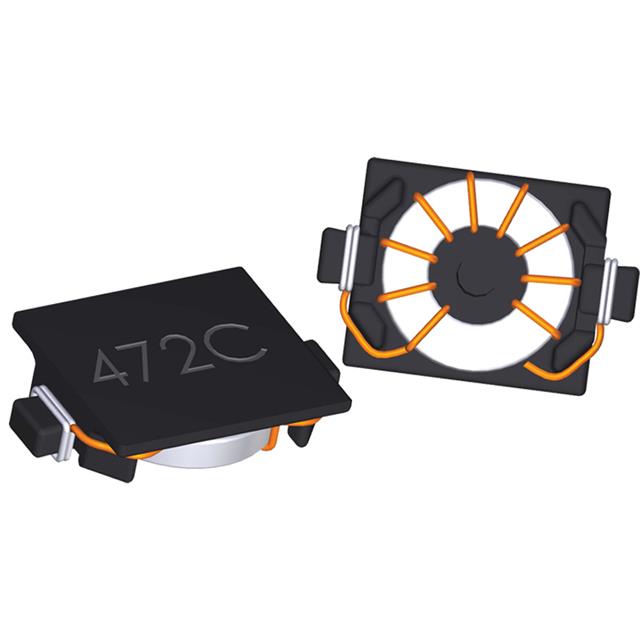

TOROIDAL INDUCTOR, 8300 SERIES, 15 ΜH, 600 MA, 0.3 OHM, ± 20%, 5.85 MM
Deep-Dive with AI
Search across all available documentation for this part.
83153C
ActiveMurata Power Solutions Inc.
TOROIDAL INDUCTOR, 8300 SERIES, 15 ΜH, 600 MA, 0.3 OHM, ± 20%, 5.85 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 83153C | 8300 Series |
|---|---|---|
| - | - | |
| Current - Saturation (Isat) | 850 mA | 850 mA |
| Current Rating (Amps) | 600 mA | 600 mA |
| DC Resistance (DCR) [Max] | 300 mOhm | 300 mOhm |
| Height - Seated (Max) [Max] | 0.071 " | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm | 1.8 mm |
| Inductance | 15 µH | 15 µH |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [x] | 7.8 mm | 7.8 mm |
| Size / Dimension [x] | 0.307 in | 0.307 in |
| Size / Dimension [y] | 5.2 mm | 5.2 mm |
| Size / Dimension [y] | 0.205 " | 0.205 " |
| Tolerance | 20 % | 20 % |
| Type | Toroidal | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
8300 Series
DC Fans DC Tubeaxial Fan, 80x80x32mm, 24VDC, 39.4CFM, 4.3W, 43dBA, 4200RPM, Ball Bearing
| Part | Tolerance | Current - Saturation (Isat) | Package / Case | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) [Max] | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Shielding | Type | Inductance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 83153C | 20 % | 850 mA | Nonstandard | Surface Mount | 7.8 mm | 5.2 mm | 0.307 in | 0.205 " | 300 mOhm | 600 mA | 0.071 " | 1.8 mm | Unshielded | Toroidal | 15 µH | 85 °C | -40 °C |
Murata Power Solutions Inc. 83153C | |||||||||||||||||
Murata Power Solutions Inc. 83153C |
Description
General part information
8300 Series
DC Fans DC Tubeaxial Fan, 80x80x32mm, 24VDC, 39.4CFM, 4.3W, 43dBA, 4200RPM, Ball Bearing
Documents
Technical documentation and resources
