71-02-7126-0000

Active

Parker Chomerics

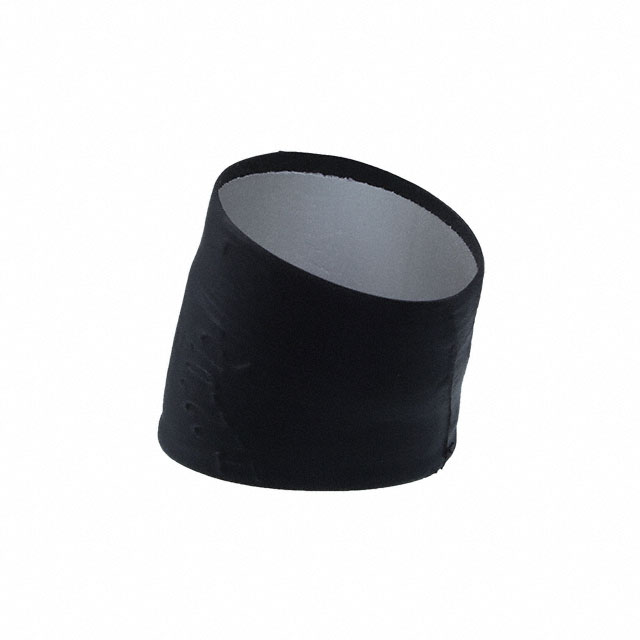

EMI HEATSHRINK BOOT R/A BLACK

Search across all available documentation for this part.

Active

Parker Chomerics

EMI HEATSHRINK BOOT R/A BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	71-02-7126-0000	71-02-7126 Series

Color	Black	Black
Features	Lip	Lip
Large Diameter Recovered [diameter]	10.41 mm	10.41 mm
Large Diameter Recovered [diameter]	0.41 in	0.41 in
Large Diameter Supplied [diameter]	0.92 in	0.92 in
Large Diameter Supplied [diameter]	23.37 mm	23.37 mm
Large Recovered Length	0.89 in	0.89 in
Large Recovered Length	22.61 mm	22.61 mm
Material	Polyolefin (PO)	Polyolefin (PO)
Small Diameter Recovered [diameter]	5.59 mm	5.59 mm
Small Diameter Recovered [diameter]	0.22 "	0.22 "
Small Diameter Supplied [diameter]	0.92 in	0.92 in
Small Diameter Supplied [diameter]	23.37 mm	23.37 mm
Small Recovered Length	5.84 mm	5.84 mm
Small Recovered Length	0.23 in	0.23 in
Total Length Recovered	0.84 "	0.84 "
Total Length Recovered	21.34 mm	21.34 mm
Type	Boot - 90°	Boot - 90°

EMI HEATSHRINK BOOT R/A BLACK

Part	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Total Length Recovered	Total Length Recovered	Material	Small Recovered Length	Small Recovered Length	Features	Color	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]
Parker Chomerics 71-02-7126-1000	Boot - 90°	0.92 in	23.37 mm	0.84 "	21.34 mm	Polyolefin (PO)	5.84 mm	0.23 in	Lip	Black	0.89 in	22.61 mm	0.92 in	23.37 mm	10.41 mm	0.41 in	5.59 mm	0.22 "
Parker Chomerics 71-02-7126-0000	Boot - 90°	0.92 in	23.37 mm	0.84 "	21.34 mm	Polyolefin (PO)	5.84 mm	0.23 in	Lip	Black	0.89 in	22.61 mm	0.92 in	23.37 mm	10.41 mm	0.41 in	5.59 mm	0.22 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Boot - 90° Black
