SJG.2B.310.CLAPV
ActiveLEMO

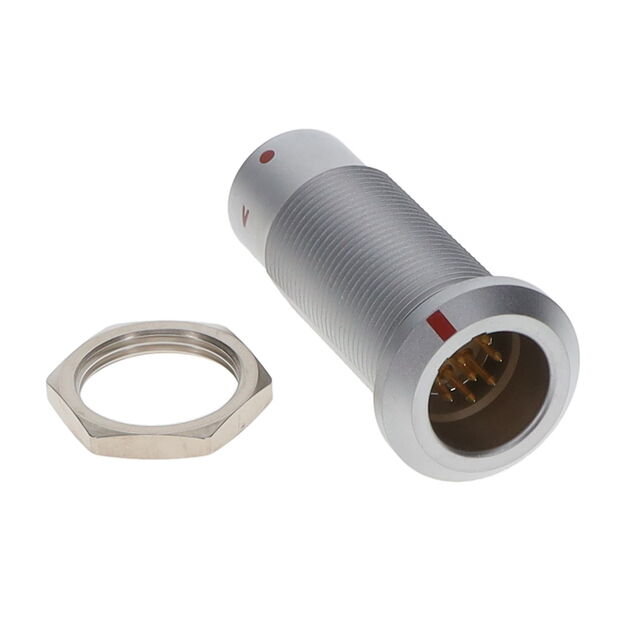

CONN ADAPTER 10P-10P F-M PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJG.2B.310.CLAPV
ActiveLEMO
CONN ADAPTER 10P-10P F-M PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SJG.2B.310.CLAPV | SJG.2B Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Male Pins | Male Pins |
| Current Rating (Amps) | 8 A | 6 - 14 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mounting Hardware, Vacuumtight | Mounting Hardware, Vacuumtight |
| Housing Color | Silver | Silver |
| Housing Finish | Chrome | Chrome |
| Housing Material | Brass | Brass |
| Includes | 1 Adapter, 1 Nut | 1 Adapter, 1 Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions (Convert From) | - | 5 - 16 |
| Number of Positions (Convert To) | 10 | 5 - 16 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation (Convert From) | J | J |
| Orientation (Convert To) | G | G |
| Shell Size - Insert (Convert From) | 310 | 305 - 316 |
| Shell Size - Insert (Convert To) | - | 314 |
| Shell Size - Insert (Convert To) [custom] | 310 | 308 - 316 |
| Shielding | Shielded | Shielded |
SJG.2B Series
CONN ADAPTER 14P-14P F-M PNL MNT
| Part | Housing Material | Orientation (Convert From) | Ingress Protection | Shell Size - Insert (Convert To) [custom] | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Number of Positions (Convert To) | Connector Style | Features | Number of Positions (Convert From) | Housing Finish | Shell Size - Insert (Convert From) | Convert From (Adapter End) | Current Rating (Amps) | Shielding | Includes | Housing Color | Orientation (Convert To) | Convert To (Adapter End) | Shell Size - Insert (Convert To) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO SJG.2B.314.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | 314 | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 14 | Standard | Mounting Hardware, Vacuumtight | 14 | Chrome | 314 | Female Sockets | 6.5 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | |
LEMO SJG.2B.308.CLAP | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 8 | Standard | Mounting Hardware | 8 | Chrome | 308 | Female Sockets | 10 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | 308 | |
LEMO SJG.2B.316.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 16 | Standard | Mounting Hardware, Vacuumtight | 16 | Chrome | 316 | Female Sockets | 6 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | 316 | |
LEMO SJG.2B.305.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 5 | Standard | Mounting Hardware, Vacuumtight | 5 | Chrome | 305 | Female Sockets | 14 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | ||
LEMO SJG.2B.310.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 10 | Standard | Mounting Hardware, Vacuumtight | Chrome | 310 | Female Sockets | 8 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | 310 | ||
LEMO SJG.2B.312.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 12 | Standard | Mounting Hardware, Vacuumtight | 12 | Chrome | 312 | Female Sockets | 7 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | ||
LEMO SJG.2B.308.CLAPV | Brass | J | IP68 - Dust Tight, Waterproof | Push-Pull | -20 C | 80 C | Bulkhead - Rear Side Nut | 8 | Standard | Mounting Hardware, Vacuumtight | 8 | Chrome | 308 | Female Sockets | 10 A | Shielded | 1 Adapter, 1 Nut | Silver | G | Male Pins | 308 |
