SJG.2B.312.CLAPV

Active

LEMO

CONN ADAPTER 12P-12P F-M PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJG.2B.312.CLAPV

Active

LEMO

CONN ADAPTER 12P-12P F-M PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 102.44

Description

General part information

SJG.2B Series

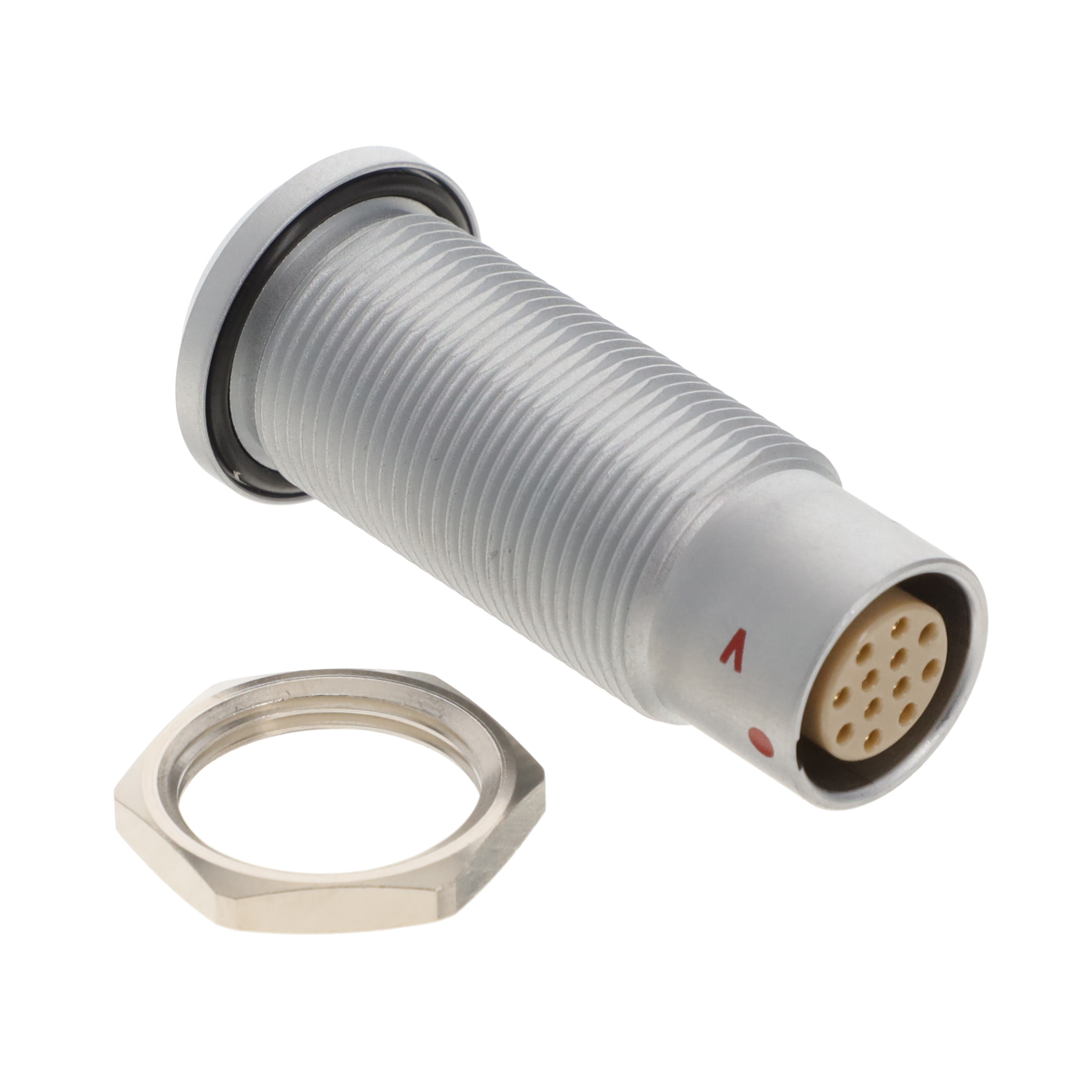

Circular Connector Standard 12/12 Female Sockets/Male Pins Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJG.2B.312.CLAPV	SJG.2B Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Male Pins	Male Pins
Current Rating (Amps)	7 A	6 - 14 A
Fastening Type	Push-Pull	Push-Pull
Features	Mounting Hardware, Vacuumtight	Mounting Hardware, Vacuumtight
Housing Color	Silver	Silver
Housing Finish	Chrome	Chrome
Housing Material	Brass	Brass
Includes	1 Adapter, 1 Nut	1 Adapter, 1 Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	12	5 - 16
Number of Positions (Convert To)	12	5 - 16
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	J	J
Orientation (Convert To)	G	G
Shell Size - Insert (Convert From)	312	305 - 316
Shell Size - Insert (Convert To)	-	314
Shell Size - Insert (Convert To)	-	308 - 316
Shielding	Shielded	Shielded

SJG.2B Series

CONN ADAPTER 14P-14P F-M PNL MNT

Part	Housing Material	Orientation (Convert From)	Ingress Protection	Shell Size - Insert (Convert To) [custom]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions (Convert To)	Connector Style	Features	Number of Positions (Convert From)	Housing Finish	Shell Size - Insert (Convert From)	Convert From (Adapter End)	Current Rating (Amps)	Shielding	Includes	Housing Color	Orientation (Convert To)	Convert To (Adapter End)	Shell Size - Insert (Convert To) [custom]
LEMO SJG.2B.314.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof	314	Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	14	Standard	Mounting Hardware, Vacuumtight	14	Chrome	314	Female Sockets	6.5 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins
LEMO SJG.2B.308.CLAP	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	8	Standard	Mounting Hardware	8	Chrome	308	Female Sockets	10 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins	308
LEMO SJG.2B.316.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	16	Standard	Mounting Hardware, Vacuumtight	16	Chrome	316	Female Sockets	6 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins	316
LEMO SJG.2B.305.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	5	Standard	Mounting Hardware, Vacuumtight	5	Chrome	305	Female Sockets	14 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins
LEMO SJG.2B.310.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	10	Standard	Mounting Hardware, Vacuumtight		Chrome	310	Female Sockets	8 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins	310
LEMO SJG.2B.312.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	12	Standard	Mounting Hardware, Vacuumtight	12	Chrome	312	Female Sockets	7 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins
LEMO SJG.2B.308.CLAPV	Brass	J	IP68 - Dust Tight, Waterproof		Push-Pull	-20 C	80 C	Bulkhead - Rear Side Nut	8	Standard	Mounting Hardware, Vacuumtight	8	Chrome	308	Female Sockets	10 A	Shielded	1 Adapter, 1 Nut	Silver	G	Male Pins	308
