6105-B
Unknown3M (TC)
CONN FIBER ST PLUG SMPLX 125UM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6105-B
Unknown3M (TC)
CONN FIBER ST PLUG SMPLX 125UM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6105-B |
|---|---|
| Attenuation - Typ | -2 dB |
| Body Material | Zinc |
| Boot Color | Black |
| Cable Diameter [diameter] | 0.9 mm |
| Connector Style | ST |
| Connector Type | Plug |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief, Dust Cap |
| Ferrule Material | Zirconia |
| Housing Color | Silver |
| Housing Material | Zinc |
| Mating Cycles | 1000 |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Reflection | -25 dB |
| Simplex/Duplex | Simplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 60 | $ 3.64 | |
Description
General part information
6105 Series

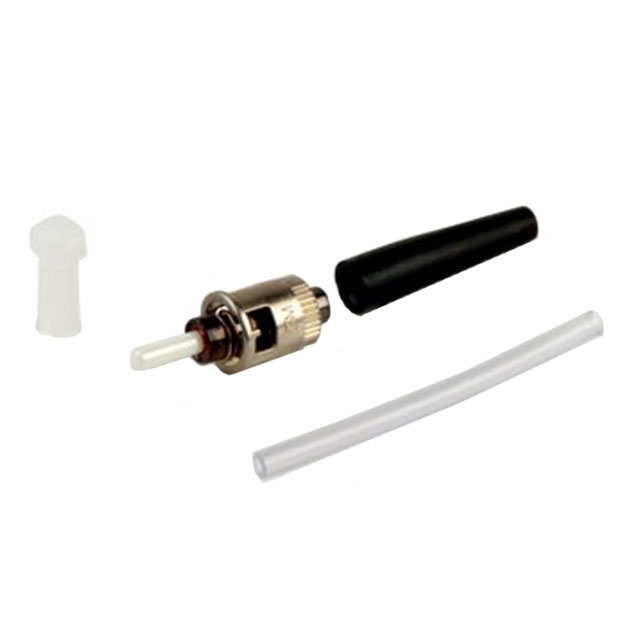

Fiber Optic Plug Connector ST Simplex 125µm Silver
Documents
Technical documentation and resources
