776087-5

Active

TE Connectivity AMP Connectors

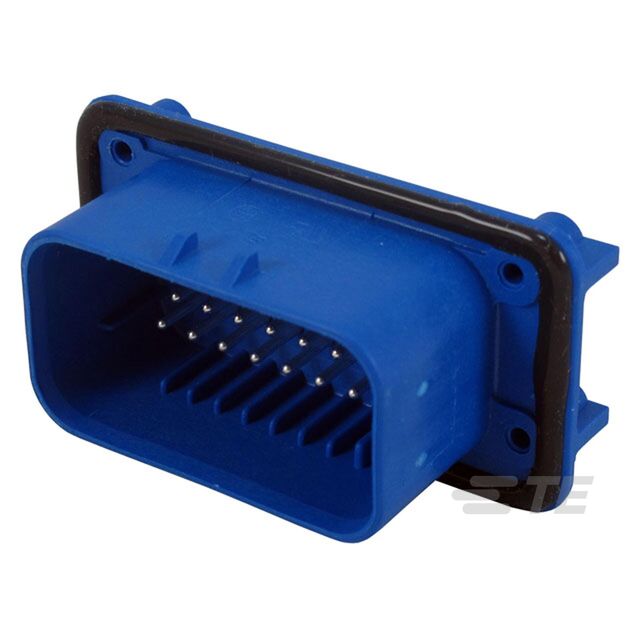

CONN HEADER R/A 23POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

776087-5

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 23POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776087-5	776087 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide, Sealed	Board Guide, Sealed
Insulation Color	Blue	Black, Natural, Blue, Gray
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	23	23
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776087 Series

CONN HEADER R/A 23POS 4MM

Part	Contact Material	Shrouding	Applications	Number of Rows	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Voltage Rating	Contact Shape	Connector Type	Number of Positions	Features	Contact Type	Termination	Mounting Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating
TE Connectivity AMP Connectors 776087-1	Brass	Shrouded - 4 Wall	Automotive, Industrial	3	All	0.157 in	4 mm	Locking Ramp	Black	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Board to Cable/Wire	250 VAC	Circular	Header	23	Board Guide, Sealed	Male Pin	Solder	Panel Mount, Right Angle, Through Hole	Varies by Wire Gauge	0.157 "	4 mm
TE Connectivity AMP Connectors 776087-2	Brass	Shrouded - 4 Wall	Automotive, Industrial	3	All	0.157 in	4 mm	Locking Ramp	Natural	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Board to Cable/Wire	250 VAC	Circular	Header	23	Board Guide, Sealed	Male Pin	Solder	Panel Mount, Right Angle, Through Hole	Varies by Wire Gauge	0.157 "	4 mm
TE Connectivity AMP Connectors 776087-5	Brass	Shrouded - 4 Wall	Automotive, Industrial	3	All	0.157 in	4 mm	Locking Ramp	Blue	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Board to Cable/Wire	250 VAC	Circular	Header	23	Board Guide, Sealed	Male Pin	Solder	Panel Mount, Right Angle, Through Hole	Varies by Wire Gauge	0.157 "	4 mm
TE Connectivity AMP Connectors 1-776087-4	Brass	Shrouded - 4 Wall	Automotive, Industrial	3	All	0.157 in	4 mm	Locking Ramp	Gray	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	125 °C	Board to Cable/Wire	250 VAC	Circular	Header	23	Board Guide, Sealed	Male Pin	Solder	Panel Mount, Right Angle, Through Hole	Varies by Wire Gauge	0.157 "	4 mm	Gold-Palladium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00
		10	$ 14.69
		25	$ 14.30
		80	$ 13.59
		240	$ 12.26
		440	$ 12.19

Description

General part information

776087 Series

Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
