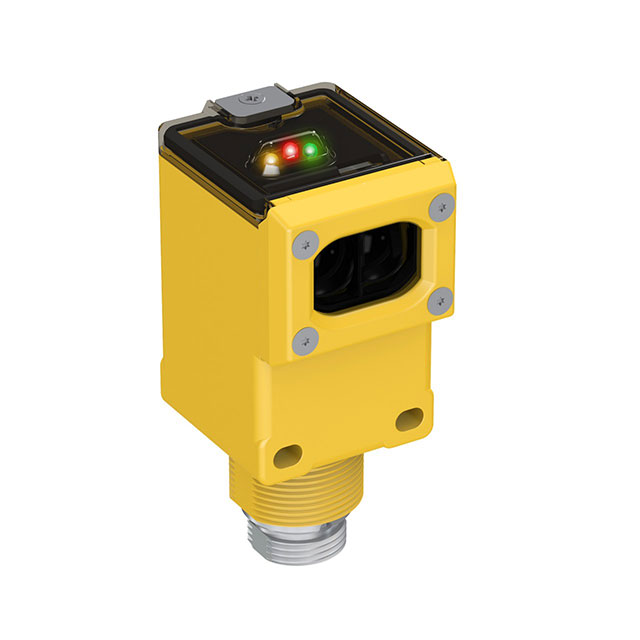

Q45VR3LVQ

Active

BANNER ENGINEERING

PHOTO SENSOR, 9M, SPDT RELAY, 250VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q45VR3LVQ

Active

BANNER ENGINEERING

PHOTO SENSOR, 9M, SPDT RELAY, 250VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q45VR3LVQ

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	SPDT
Response Time	15 ms
Sensing Distance [Max]	9000 mm
Sensing Distance [Max]	354.33 in
Sensing Distance [Min]	31.5 in
Sensing Distance [Min]	800 mm
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	250 V, 250 VAC
Voltage - Supply [Min]	12 V, 24 VAC

Q45V Series

Part	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Sensing Distance	Sensing Distance	Output Configuration	Light Source	Response Time	Cable Length	Cable Length	Ingress Protection	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Adjustment Type	Sensing Distance [Max]	Sensing Distance [Min]
BANNER ENGINEERING Q45VR2LV W/30	Cable	-40 °C	70 °C	250 VAC	90 VAC	NonPolarized Retroreflective	29.53 ft	9 m	SPDT - Dark-ON/Light-ON	Red	15 ms	354.33 in	9 m	NEMA 6P IEC IP67
BANNER ENGINEERING Q45VR3LV W/30	Cable with Connector	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	NonPolarized Retroreflective			SPDT	Red	15 ms	78.74 in	2 m	NEMA 6P IEC IP67	80 mm	9000 mm	354.33 "	3.15 "
BANNER ENGINEERING Q45VR3LV	Cable	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	NonPolarized Retroreflective			SPDT	Red	15 ms	78.74 in	2 m	NEMA 6P IEC IP67			9000 mm	800 mm	Adjustable	354.33 in	31.5 in
BANNER ENGINEERING Q45VR2LV	Cable	-40 °C	70 °C	250 VAC	90 VAC	NonPolarized Retroreflective	29.53 ft	9 m	Light-On/Dark-On	LED	15 ms	78.74 in	2 m	NEMA 6P IEC IP67
BANNER ENGINEERING Q45VR3R	Cable	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	Through-Beam	196.85 ft	60 m	SPDT	Infrared	15 ms	78.74 in	2 m	IP67 NEMA 6P IEC IP67					Adjustable
BANNER ENGINEERING Q45VR3FQ	Connector	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	Fiber Optic			SPDT	Infrared	15 ms			NEMA 6P IEC IP67					Adjustable
BANNER ENGINEERING Q45VR2CVQ	Connector	-40 °C	70 °C	250 VAC	90 VAC	Convergent	1.496 in	38 mm	SPDT - Dark-ON/Light-ON	Red	15 ms			NEMA 6P IEC IP67
BANNER ENGINEERING Q45VR3LP	Cable	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	Polarized Retroreflective			SPDT	Red	15 ms	78.74 in	2 m	NEMA 6P IEC IP67		6 m		15 cm	Adjustable	236.22 in	5.91 "
BANNER ENGINEERING Q45VR3LVQ	Connector	-25 °C	55 °C	250 V 250 VAC	12 V 24 VAC	NonPolarized Retroreflective			SPDT	Red	15 ms			NEMA 6P IEC IP67			9000 mm	800 mm	Adjustable	354.33 in	31.5 in
BANNER ENGINEERING Q45VR2FVQ	Connector	-40 °C	70 °C	250 VAC	90 VAC					Red LED	15 ms			NEMA 6P IEC IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.00
Newark	Each	1	$ 228.66

Description

General part information

Q45V Series

Retroreflective, NonPolarized Optical Sensor 31.50" ~ 354.33" (800mm ~ 9000mm) SPDT
