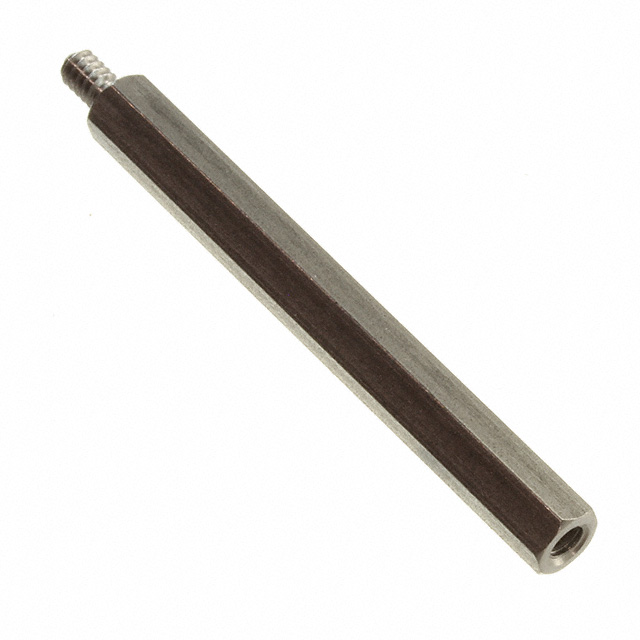

4525-440-SS
ActiveRAF Electronic Hardware
3/16 HEX X 1-3/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4525-440-SS
ActiveRAF Electronic Hardware
3/16 HEX X 1-3/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4525-440-SS |
|---|---|
| Between Board Height | 1.75 in |
| Between Board Height | 44.45 mm |
| Diameter - Outside [custom] | 0.1875 in |
| Diameter - Outside [diameter] | 0.188 in, 4.78 mm |
| Gender | Male, Female |
| Length - Overall [x] | 49.21 mm |
| Length - Overall [x] | 1.938 " |
| Material | Stainless Steel |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.81 | |
| 5 | $ 2.67 | |||
| 10 | $ 2.60 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.47 | |||
Description
General part information
4525-440 Series
Hex Standoff Threaded #4-40 Stainless Steel 1.750" (44.45mm)
Documents
Technical documentation and resources
