D10AFPQ

Active

BANNER ENGINEERING

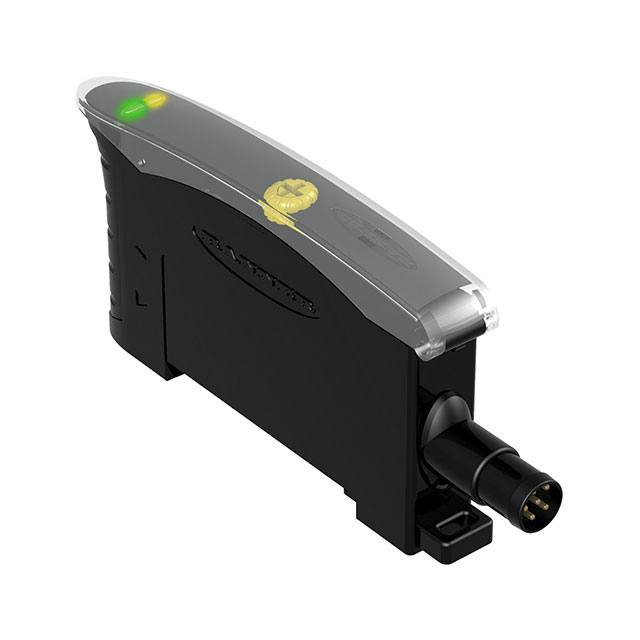

D10AFPQ SENSOR FOR USE WITH PLASTIC FIBER OPTICS

Search across all available documentation for this part.

Active

BANNER ENGINEERING

D10AFPQ SENSOR FOR USE WITH PLASTIC FIBER OPTICS

Technical Specifications

Parameters and characteristics for this part

Specification	D10AFPQ

Connection Method	Connector
Ingress Protection	NEMA 1 IEC IP50
Light Source	LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	500 µs
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Connection Method	Response Time	Cable Length	Cable Length	Sensing Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Ingress Protection	Output Configuration	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Adjustment Type	Operating Temperature [Max]	Operating Temperature [Min]
BANNER ENGINEERING D10AFP	Cable	500 µs	78.74 in	2 m	Fiber Optic	55 °C	-10 °C	NEMA 1 IEC IP50	NPN/PNP	LED	30 VDC	10 VDC
BANNER ENGINEERING D10AFPY	Cable	200 µs	78.74 in	2 m	Fiber Optic			NEMA 1 IEC IP50	NPN/PNP	Red (660nm)	30 VDC	10 VDC	12-Turn Potentiometer Adjustable	55 °C	-20 C
BANNER ENGINEERING D10AFPQ5	Connector M12	500 µs			Fiber Optic			IP50 IEC NEMA 1 NEMA 1 IEC IP50	NPN/PNP	Red (660nm)	30 VDC	10 VDC	12-Turn Potentiometer Adjustable	55 °C	-20 C
BANNER ENGINEERING D10AFPQ	Connector	500 µs			Fiber Optic	55 °C	-10 °C	NEMA 1 IEC IP50	NPN/PNP	LED	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 128.00
Newark	Each	1	$ 134.00

General part information

Fiber Optic Optical Sensor NPN/PNP
