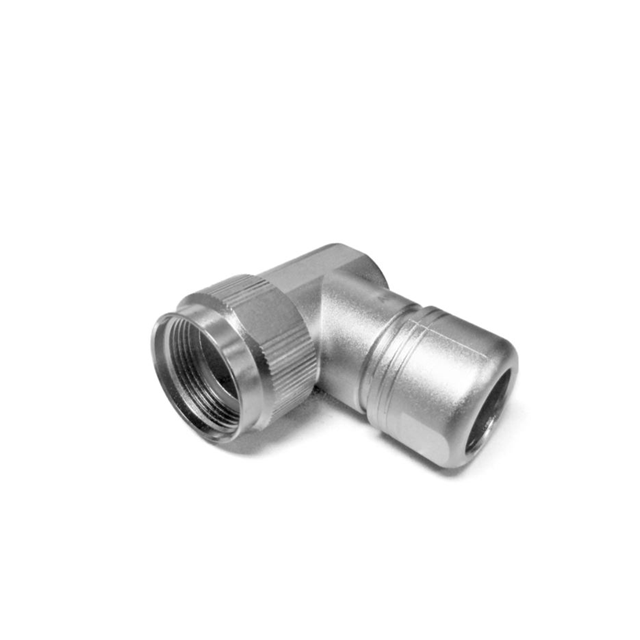

RT0B-16CG-S1

Obsolete

Amphenol Sine Systems Corp

CABLE GRIP RA 9-14.5MM 15/16-20

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CABLE GRIP RA 9-14.5MM 15/16-20

Technical Specifications

Parameters and characteristics for this part

Specification	RT0B-16CG-S1

Color	Gray
Includes	Gasket, EMC Grounding Ring, Seal, Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc
Outside Cable Diameter (Max) [Max] [diameter]	0.571 in
Outside Cable Diameter (Max) [Max] [diameter]	14.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	9 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.354 in
Thread Size	15/16-20
Type	Cable Grip - 90°

Part	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Ingress Protection	Includes	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Amphenol Sine Systems Corp RT0B-16CG-S2	Cable Grip - 90°	13.5 mm	0.531 in	15/16-20	IP67 - Dust Tight Waterproof	EMC Grounding Ring Gasket Nut Seal	Gray	16.99 mm	0.669 in	Zinc
Amphenol Sine Systems Corp RT0B-14CG-S1	Cable Grip - 90°	6 mm	0.236 in	13/16-20	IP67 - Dust Tight Waterproof	EMC Grounding Ring Gasket Nut Seal	Gray	10 mm	0.394 "	Zinc
Amphenol Sine Systems Corp RT0B-12CG-S1	Cable Grip - 90°	6 mm	0.236 in	11/16-24	IP67 - Dust Tight Waterproof	EMC Grounding Ring Gasket Nut Seal	Gray			Zinc	0.413 in	10.5 mm
Amphenol Sine Systems Corp RT0B-16CG-S1	Cable Grip - 90°	9 mm	0.354 in	15/16-20	IP67 - Dust Tight Waterproof	EMC Grounding Ring Gasket Nut Seal	Gray	14.5 mm	0.571 in	Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Grip - 90° Zinc 15/16-20 Gray
