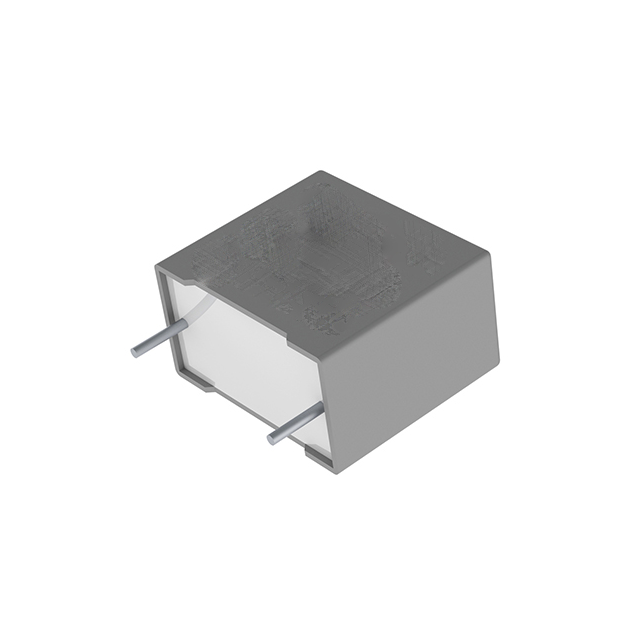

R475N31005001K

Obsolete

KEMET

CAP FILM 0.1UF 10% 1KVDC RADIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.1UF 10% 1KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R475N31005001K

Applications	EMI, RFI Suppression, Automotive
Capacitance	100000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	520 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Capacitance	Voltage Rating - AC	Tolerance	Voltage Rating - DC	Voltage Rating - DC	Ratings	Lead Spacing	Lead Spacing	Applications	Termination	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET R475N31005001K	85 °C	-40 °C	16.1 mm	0.634 in	Metallized Polypropylene (PP)	100000 pF	520 V	10 %	1 kVDC	1 kV	AEC-Q200 X2	22.5 mm	0.886 in	Automotive EMI RFI Suppression	PC Pins	Radial	Through Hole	7 mm	0.276 in	1.043 in	26.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF Film Capacitor 520V 1000V (1kV) Polypropylene (PP), Metallized Radial
