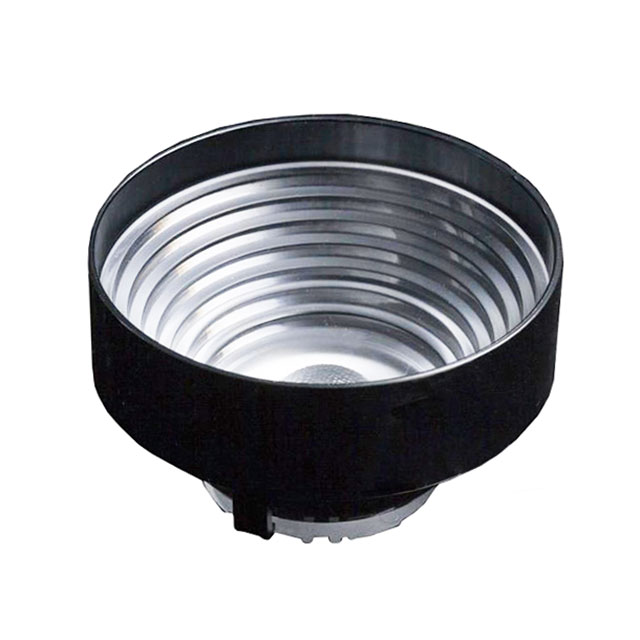

CP15776_CARMEN-W-C - CP15776_CARMEN-W-C

CP15776_CARMEN-W-C

Active
LEDiL

ASSEMBLY ROUND 1 POS 72,7MM (D) 41,5MM(H/ TRAY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

CP15776_CARMEN-W-C - CP15776_CARMEN-W-C

CP15776_CARMEN-W-C

Active
LEDiL

ASSEMBLY ROUND 1 POS 72,7MM (D) 41,5MM(H/ TRAY ROHS COMPLIANT: YES

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationCP15776_CARMEN-W-C
ColorClear
For Use With/Related ManufacturerBridgelux, Citizen, Cree
Lens Size [diameter]69.5 mm
Lens TransparencyDiffused
MaterialAcrylic
Mounting TypeTwist Lock
Number of LEDs1
Optical PatternWide
TypeLens With Holder
Viewing Angle [Max]53.5 °
Viewing Angle [Min]50 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 7.12
15$ 5.16
90$ 4.27
450$ 3.74
945$ 3.53
2010$ 3.45
NewarkEach 10$ 5.71
25$ 5.17
50$ 4.85
100$ 4.52
250$ 3.77
500$ 3.66

Description

General part information

CP15776 Series

Lens With Holder Clear 50° ~ 53.5° Wide Twist Lock
