31-432.036

Active

EAO

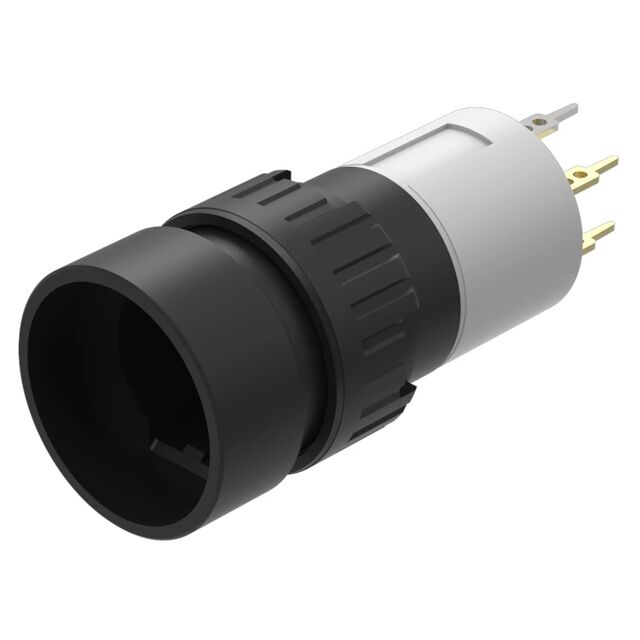

SWITCH PB DPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	31-432.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	DPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB DPST-NC 0.1A 42V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Type	Actuator Type	Mechanical Life	Mounting Type	Termination Style	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Circuit	Voltage Rating - DC	Voltage Rating - AC
EAO 31-432.036	55 °C	-25 °C	100 mA	Standard	Round, Button (Not Included)	5000000 Cycles	Panel Mount, Front	PC Pin, Solder Lug	IP40	16 mm	No Marking	On-Mom	DPST-NC	42 V	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NC Standard Panel Mount, Front
