ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA PLUG TO N JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1057381-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA PLUG TO N JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1057381-1 | 1057 Series |
|---|---|---|
| Adapter Series | OSM to OSN | OSM to OSN, OSP to OST, BNC to N |
| Adapter Type | Plug to Jack | Jack to Jack, Plug to Jack |
| Body Finish | - | Nickel, Gold; Passivated, Nickel; Passivated |
| Body Material | Stainless Steel | Stainless Steel, Brass |
| Cable Group | - | RG-174, 188, 316, 187, 179, RG-405 (.085" Semi Rigid) |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Brass |
| Center Contact Plating | Gold | Gold |
| Center Gender | - | Female to Female |
| Connector Style | - | N Type, TNC |
| Connector Type | - | Female Socket, Jack, Receptacle, Male Pin, Plug |
| Contact Termination | - | Solder |
| Conversion Type | Between Series | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin | Female Socket, SMA Jack, N Plug, Male Pin, OSP Plug, Male Pin, BNC Plug, Male Pin, SMA Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, N Jack | Female Socket, N Jack, SMA Jack, TNC Jack, BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Threaded, Snap-On, Bayonet Lock |
| Features | - | Extended Insulation |
| Frequency - Max [Max] | 15 GHz | 4 - 18 GHz |
| Housing Color | - | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Connector, 1 Insulator, 1 Clamp, 1 Contact, 2 Gaskets, 1 Nut, 1 Lockwasher, 1 Gasket, 2 Nuts, 1 Sleeve |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Flange, Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | - | 1 |
| Operating Temperature [Max] | 125 °C | 105 - 165 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | - | Solder, Clamp |
| Style | Straight | Straight |
| Voltage Rating | - | 250 - 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1057 Series
CONN N JACK STR 50 OHM SOLDER
| Part | Mounting Feature | Contact Termination | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Includes | Voltage Rating | Center Contact Material | Impedance | Connector Type | Frequency - Max [Max] | Number of Ports | Connector Style | Body Material | Dielectric Material | Shield Termination | Mating Cycles | Body Finish | Features | Adapter Series | Center Gender | Style | Convert From (Adapter End) | Adapter Type | Conversion Type | Mounting Type | Convert To (Adapter End) | Cable Group | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057159-1 | Bulkhead - Front Side Nut | Solder | Silver | -65 ░C | 105 ░C | Gold | 1 Clamp, 1 Connector, 1 Contact, 1 Insulator, 1 Lockwasher, 1 Nut, 2 Gaskets | 600 V | Beryllium Copper | 50 Ohms | Female Socket, Jack | 11 GHz | 1 | N Type | Stainless Steel | Polytetrafluoroethylene (PTFE) | Solder | 500 | ||||||||||||
TE Connectivity AMP Connectors 1057780-1 | Flange | Solder | Silver | Gold | Beryllium Copper | 50 Ohms | Female Socket, Receptacle | 7 GHz | 1 | TNC | Brass | Polytetrafluoroethylene (PTFE) | Solder | 500 | Nickel | Extended Insulation | ||||||||||||||
TE Connectivity AMP Connectors 1057341-1 | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | OSM to OSN | Female to Female | Straight | Female Socket, SMA Jack | Jack to Jack | Between Series | Free Hanging (In-Line) | Female Socket, N Jack | ||||||||||||||||||
TE Connectivity AMP Connectors 1057631-1 | Solder | Gold, Silver | -65 ░C | 105 ░C | Gold | 335 V | Brass | 50 Ohms | Male Pin, Plug | 15 GHz | 1 | TNC | Stainless Steel | Polytetrafluoroethylene (PTFE) | Solder | 500 | Gold; Passivated | Free Hanging (In-Line) | ||||||||||||
TE Connectivity AMP Connectors 1057377-1 | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Straight | N Plug, Male Pin | Plug to Jack | Between Series | Free Hanging (In-Line) | Female Socket, SMA Jack | ||||||||||||||||||||
TE Connectivity AMP Connectors 1057140-1 | Bulkhead - Front Side Nut | Solder | Silver | -65 ░C | 165 °C | Gold | 1000 VDC | Brass | 50 Ohms | Female Socket, Jack | 11 GHz | 1 | N Type | Brass | Polytetrafluoroethylene (PTFE) | Clamp | 500 | Nickel | 179, 187, 188, 316, RG-174 | |||||||||||
TE Connectivity AMP Connectors 1057910-1 | Bulkhead | Gold | 1 Connector, 1 Lockwasher, 1 Nut | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | OSP to OST | Straight | OSP Plug, Male Pin | Plug to Jack | Between Series | Female Socket, TNC Jack | Snap-On, Threaded | |||||||||||||||||
TE Connectivity AMP Connectors 1057289-1 | Flange | Solder | Silver | -65 ░C | 165 °C | Gold | 250 VDC | Beryllium Copper | 50 Ohms | Female Socket, Receptacle | 11 GHz | 1 | N Type | Stainless Steel | Polytetrafluoroethylene (PTFE) | Solder | 500 | Extended Insulation | ||||||||||||
TE Connectivity AMP Connectors 1057392-1 | -65 ░C | 165 °C | Gold | Brass | 50 Ohms | 4 GHz | Stainless Steel | Polytetrafluoroethylene (PTFE) | BNC to N | Straight | BNC Plug, Male Pin | Plug to Jack | Between Series | Free Hanging (In-Line) | Female Socket, N Jack | Bayonet Lock, Threaded | ||||||||||||||
TE Connectivity AMP Connectors 1057463-1 | Bulkhead | -65 ░C | 125 °C | Gold | 1 Connector, 1 Lockwasher, 1 Nut | Brass | 50 Ohms | 15 GHz | Stainless Steel | Polytetrafluoroethylene (PTFE) | OSM to OSN | Female to Female | Straight | Female Socket, SMA Jack | Jack to Jack | Between Series | Female Socket, N Jack | |||||||||||||
TE Connectivity AMP Connectors 1057154-1 | Bulkhead - Front Side Nut | Solder | Silver | -65 ░C | 165 °C | Gold | 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Lockwasher, 1 Sleeve, 2 Nuts | 1000 VDC | Brass | 50 Ohms | Female Socket, Jack | 11 GHz | 1 | N Type | Stainless Steel | Polytetrafluoroethylene (PTFE) | Clamp | 500 | ||||||||||||
TE Connectivity AMP Connectors 1057390-1 | Gold | Brass | Brass, Stainless Steel | Polytetrafluoroethylene (PTFE) | Nickel; Passivated | BNC to N | Straight | N Plug, Male Pin | Plug to Jack | Between Series | Free Hanging (In-Line) | BNC Jack, Female Socket | Bayonet Lock, Threaded | |||||||||||||||||
TE Connectivity AMP Connectors 1057381-1 | -65 ░C | 125 °C | Gold | Beryllium Copper | 50 Ohms | 15 GHz | Stainless Steel | Polytetrafluoroethylene (PTFE) | OSM to OSN | Straight | SMA Plug, Male Pin | Plug to Jack | Between Series | Free Hanging (In-Line) | Female Socket, N Jack | |||||||||||||||
TE Connectivity AMP Connectors 1057165-1 | Bulkhead - Front Side Nut | Solder | Silver | -65 ░C | 105 ░C | Gold | 1 Clamp, 1 Connector, 1 Contact, 1 Insulator, 1 Lockwasher, 1 Nut, 2 Gaskets | 335 V | Brass | 50 Ohms | Female Socket, Jack | 18 GHz | 1 | N Type | Stainless Steel | Polytetrafluoroethylene (PTFE) | Solder | 500 | RG-405 (.085" Semi Rigid) |
Description
General part information
1057 Series

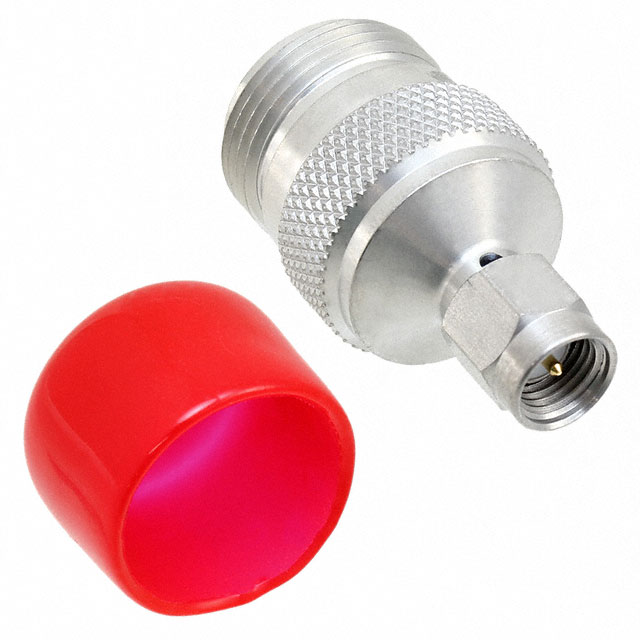

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
