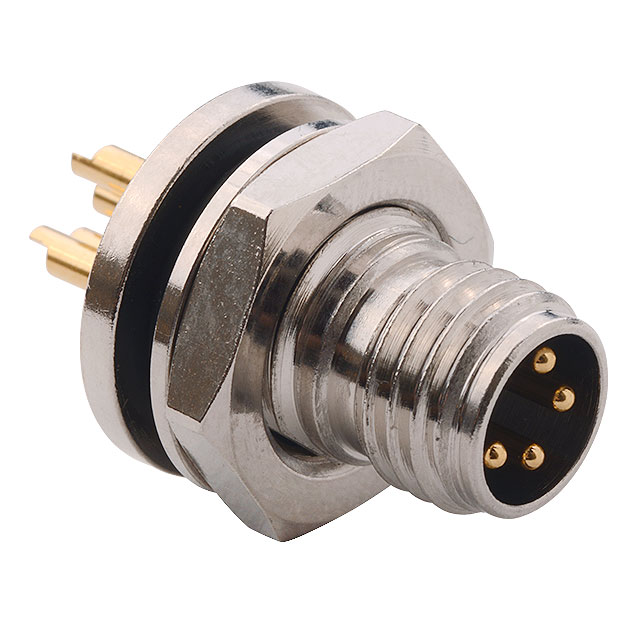

855-004-103R004 - 855-004-103R004

855-004-103R004

Active
MH Connectors

SENSOR CONNECTOR, IP67, PANEL, VULCON SERIES, M8, MALE, 4 POSITIONS, SOLDER PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+4
855-004-103R004 - 855-004-103R004

855-004-103R004

Active
MH Connectors

SENSOR CONNECTOR, IP67, PANEL, VULCON SERIES, M8, MALE, 4 POSITIONS, SOLDER PIN

Deep-Dive with AI

DocumentsDatasheetDrawing EN+4

Technical Specifications

Parameters and characteristics for this part

Specification855-004-103R004
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Current Rating (Amps)3 A
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM8-4
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.08
10$ 8.18
25$ 7.70
40$ 7.50
100$ 7.31
300$ 6.52
500$ 6.12
1000$ 5.41
NewarkEach 100$ 5.62
250$ 5.21
500$ 4.95

Description

General part information

855-004 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
