142M1D19050

Active

METZ CONNECT USA Inc.

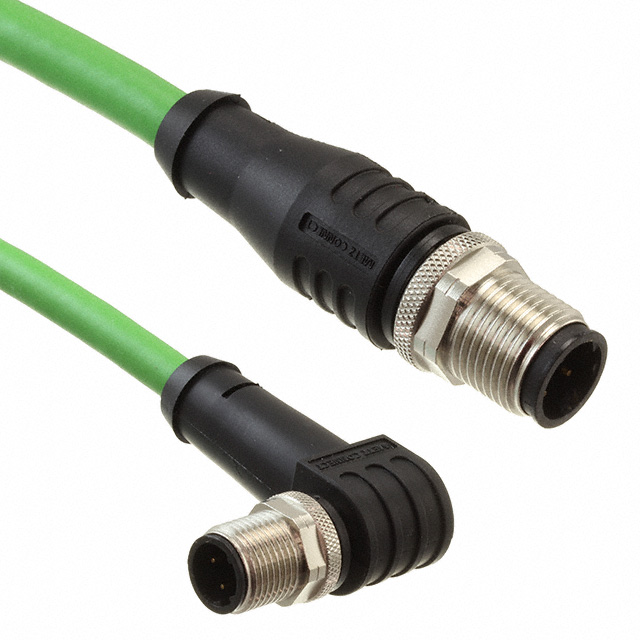

CBL 4POS RCPT RA TO RCPT 16.4'

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CBL 4POS RCPT RA TO RCPT 16.4'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	142M1D19050	142M1D19 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	4	4
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	D	D
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Receptacle, Right Angle	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	4	4
2nd Connector Number of Positions Loaded	All	All
2nd Connector Orientation	D	D
2nd Connector Shell Size - Insert	M12	M12
2nd Connector Type	Receptacle	Receptacle
Assembly Configuration	Standard	Standard
Cable Material	Polyurethane (PUR)	Polyurethane (PUR)
Cable Type	Round	Round
Color	Green	Green
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length	-	1 - 2 m
Length	-	3.28 - 6.56 ft
Shielding	Shielded	Shielded
Usage	Industrial Environments, Cat5e	Industrial Environments, Cat5e

CBL 4POS RCPT RA TO RCPT 6.56'

Part	1st Connector Shell Size - Insert	1st Connector Mounting Type	Assembly Configuration	1st Connector Gender	Length [x]	Length [x]	1st Connector Number of Positions Loaded	Cable Type	Cable Material	Shielding	Ingress Protection	2nd Connector Orientation	2nd Connector Mounting Type	Color	1st Connector Type	2nd Connector Shell Size - Insert	1st Connector Orientation	Usage	2nd Connector Type	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	1st Connector Number of Positions
METZ CONNECT USA Inc. 142M1D19020	M12	Free Hanging (In-Line)	Standard	Male Pins	2 m	6.56 ft	All	Round	Polyurethane (PUR)	Shielded	IP67 - Dust Tight, Waterproof	D	Free Hanging (In-Line)	Green	Receptacle, Right Angle	M12	D	Cat5e, Industrial Environments	Receptacle	4	All	4
METZ CONNECT USA Inc. 142M1D19050	M12	Free Hanging (In-Line)	Standard	Male Pins			All	Round	Polyurethane (PUR)	Shielded	IP67 - Dust Tight, Waterproof	D	Free Hanging (In-Line)	Green	Receptacle, Right Angle	M12	D	Cat5e, Industrial Environments	Receptacle	4	All	4
METZ CONNECT USA Inc. 142M1D19010	M12	Free Hanging (In-Line)	Standard	Male Pins	1 m	3.28 ft	All	Round	Polyurethane (PUR)	Shielded	IP67 - Dust Tight, Waterproof	D	Free Hanging (In-Line)	Green	Receptacle, Right Angle	M12	D	Cat5e, Industrial Environments	Receptacle	4	All	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 16.40' (5.00m)
